Potted toroidal transformers 15 VA up to 700 VA


Datasheet as PDF

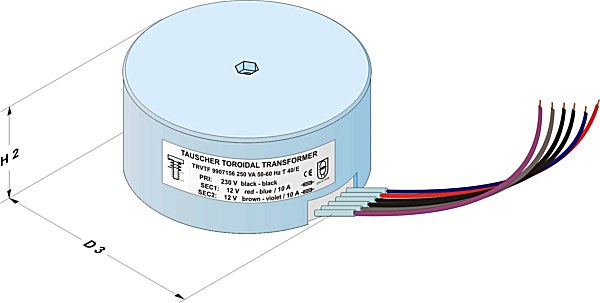

Potted toroidal transformers (TRVTF) in a round housing type VR, version with free wires

ceenergyvde61558_vnk


Potted toroidal transformers


Table


Power

Dimensions in mm

Central hole

Sagging

Total
weight

D3

H2

15 VA

64

35

5,1

SW 7

0,38 kg

30 VA

82

39

5,1

SW 7

0,65 kg

50 VA

87

50

5,1

SW 7

0,90 kg

50 VA

87

50

6,1

SW 8

0,90 kg

80 VA

105

52

6,1

SW 10

1,30 kg

100 VA

105

52

6,1

SW 10

1,50 kg

160 VA

105

75

6,1

SW 10

2,20 kg

200 VA

126

65

6,1

SW 10

2,60 kg

400 VA

157

75

10,4

SW 16

4,60 kg

500 VA

147

90

8,2

SW 13

5,40 kg

700 VA

156

100

10,4

SW 16

6,90 kg

Technical changes and optimisation reserved. All details are guide values, variations are possible.
