Open toroidal power transformer


Daasheet as PDF

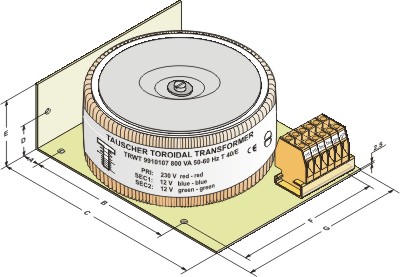

Toroidal transformers, mounted on a metal angle (TRWT), version with terminals, 800 VA up to 4000 VA

ceenergyvdeEN61558-o-sm


Open toroidal power transformer


Table


Power

Dimensions in mm

Copper
weight

Total
weight

A

B

C

D

E

F

G

800 VA

20

160

220

40

80

150

175

2,5 kg

7,0 kg

1000 VA

20

160

240

40

80

150

175

3,5 kg

8,3 kg

2000 VA

20

180

280

65

130

210

240

7,5 kg

18,2 kg

2500 VA

25

220

320

65

130

220

260

8,5 kg

25,0 kg

4000 VA

25

285

360

65

130

250

300

11,0 kg

39,0 kg

Technical changes and optimisation reserved. All details are guide values, variations are possible.
