Toroidal transformers with snap in mechanism


Datasheet as PDF
Toroidal safety and isolating transformers, mounted via a snap in mechanism for DIN rails TS 35, 25 VA up to 100 VA.

ceenergyvdeEN61558-o-sm


Toroidal transformers with snap in mechanism


Table


Type

Secondary
power

Efficiency

No-load current
 ± 10 %

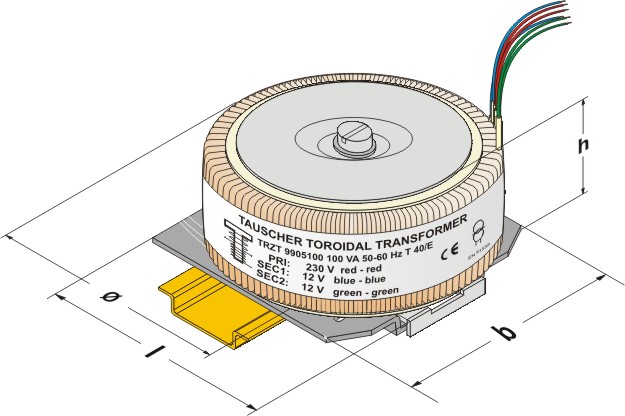

Dimensions in mm

Copper
weight

Total
weight

Ø

h

l

b

TRO.R

25 VA

82 %

6 mA

60

38

90

93,5

0,17 kg

0,45 kg

TRO.R

40 VA

86 %

8 mA

69

50

90

93,5

0,25 kg

0,75 kg

TRO.R

50 VA

86 %

8 mA

75

48

90

93,5

0,26 kg

0,90 kg

TRO.R

100 VA

90 %

10 mA

90

48

90

93,5

0,45 kg

1,40 kg

Technical changes and optimisation reserved. All details are guide values, variations are possible.
Other dimensions and technical changes on request.

02/2012
