Toroidal transformers mounted on base plate


Datasheet as PDF

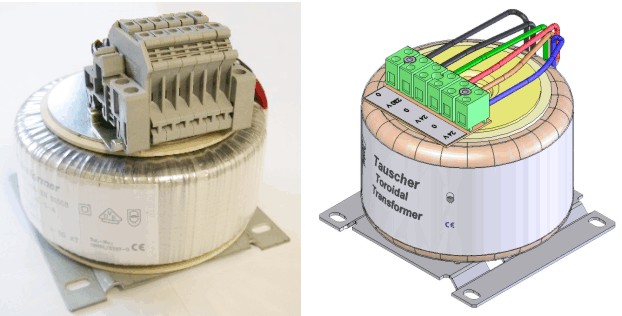

Toroidal safety and isolating transformers mounted on base plate, 25 VA up to 1000 VA.

ceenergyvdeEN61558-o-sm


Toroidal transformers mounted on base plate

BV 16027002

Toroidal transformers mounted on base plate


Table


Secondary
power

Efficiency

No-load
current

Voltage
factor

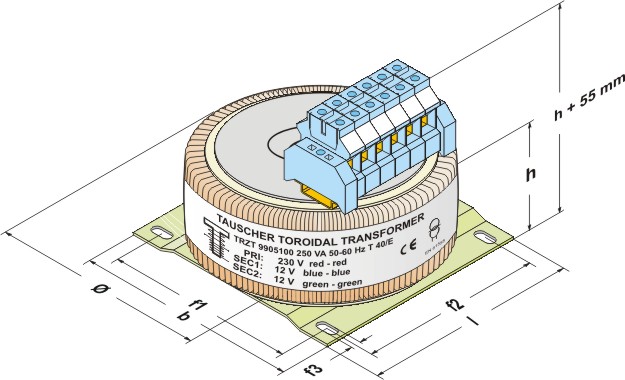

Dimensions in mm

Copper
weight

Total
weight

RKT Ø

RKT h

l

b

f1

f2

f3

max. 25 VA

82 %

6 mA

1,17

60

38

60

59,5

49

44

3,6

0,17 kg

0,45 kg

max. 40 VA

86 %

8 mA

1,13

69

50

66

66

55

50

4,5

0,25 kg

0,75 kg

max. 50 VA

86 %

8 mA

1,13

75

48

74,5

74,5

62,5

56

4,8

0,26 kg

0,90 kg

max. 100 VA

90 %

10 mA

1,10

90

48

84

86

73,5

64

4,8

0,45 kg

1,40 kg

max. 150 VA

92 %

12 mA

1,08

96

56

96

102,5

86,8

84

5,8

0,64 kg

1,90 kg

max. 200 VA

92 %

15 mA

1,08

110

54

105

103

86

80,5

5,8

0,71 kg

2,30 kg

max. 350 VA

93 %

18 mA

1,07

118

76

120

121

103

90

5,8

1,24 kg

3,80 kg

max. 500 VA

94 %

25 mA

1,06

128

84

135

128

107

104

5,8

1,90 kg

5,50 kg

max. 700 VA

96 %

30 mA

1,04

156

85

150

156

134

122

7

2,24 kg

7,20 kg

max. 1000 VA

97 %

50 mA

1,03

168

91

174

167

141

135

7

3,50 kg

9,50 kg

Technical changes and optimisation reserved. All details are guide values, variations are possible.
Other dimensions and technical changes on request.

02/2012
