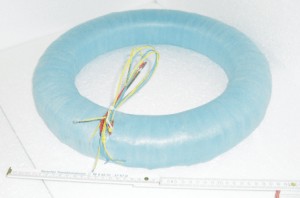

Toroidal measure transformer HVDC-transducer

ceenergyvdeEN61558-o-sm


Special toroidaltransformer

BV 22086001d


Technical data


Design: 2 detector windings, 1 measurewinding
5 ‰ precision
Core: amorphous ring tape core Vitrovac 6025 Z
Dimensions: D 450 mm, H 90 mm
Weight: 30 kg
Current: 4000 A
Application: HVDC, medium voltage PFC and active filters, small DC current detection in large AC currents
