Special toroidaltransformer 5000 VA for photovoltaic


Datasheet as PDF

Solartransformers, mainstransformer 5000 VA for photovoltaic systems, inverter - power transformer unit

ceenergyvdeEN61558-o-sm

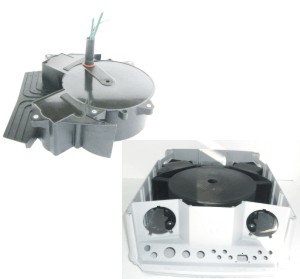

Special toroidaltransformer

BV 2337002-005


Technical data


Power: 5000 VA
Input: 168 V
Output: 230 V 21,7 A
Short circuit voltage Uk = 1,5 %
Protection class II
Protective class IP 65
Cast resin: Polyurethan resin with especially tearproof characteristics
Core: FeSi tape, low on losses
Chokes: two smoothing chokes built in a housing, core made of nanocrystalline material
