Toroidal transformer with high thermal conductivity


Datasheet as PDF

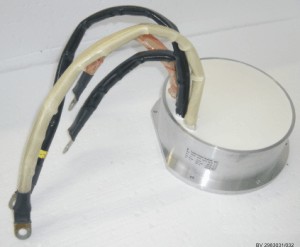

Midfrequency toroidal transformer potted with high thermal conductive cast resin (TRVFCT)

ceenergyvdeEN61558-o-sm


Special toroidaltransformer

2983031/032


Technical data


Power: 9,3 kVA
Frequency: 10 kHz
Voltage: 71 V : 71 V
Current: 130 A
Cast resin: Epoxy resin
Thermal conductivity of the cast resin: 1,26 W/mK
Heat removal: through the cast resin and an aluminum pot to a chassis plate
Winding: fine wiry HF-litz for a low Rac/Rdc factor
Core: nanocrystalline material VITROPerm
Dimensions: D 210 mm, H 80 mm
Application: resonance converter
