Three-phase toroidal transformer 30 VA up to 30 kVA


Datasheet as PDF

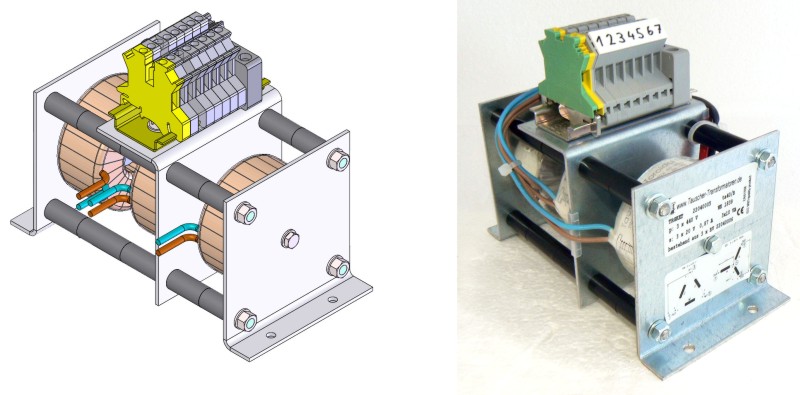

Three-phase toroidal transformer mounted on a metal sheet angle

ceenergyvdeEN61558-o-sm


Three-phase toroidal transformerThree-phase toroidal transformer


Table


Secondary
power

Dimensions

Total
weight

H

L

B

A

Ø

30 VA

70

ca. 80

60

30

5,2

1,50 kg

300 VA

110

ca. 140

100

70

6,2

5,00 kg

900 VA

140

ca. 200

140

110

6,2

12 kg

3000 VA

190

ca. 250

190

140

8,2

30 kg

9000 VA

270

ca. 360

270

220

10,2

100 kg

15000 VA

300

ca. 320

300

250

10,2

150 kg

21000 VA

340

ca. 330

340

280

16,5

180 kg

30000 VA

370

ca. 480

370

310

16,5

220 kg

45000 VA / 400 Hz

370

410

370

-

-

200 kg

Technical changes and optimisation reserved. All details are guide values, variations are possible.

10/2016


Energy efficient toroidal three phase transformers


Comparison of Tauscher transformers without current inrush in loss reduced version with conventional toroidal transformers


Power

Tauscher without current inrush and in loss reduced version

Normal toroidal transformer

PFe

PCu

G

PFe

PCu

G

4000 VA

25 W

140 W

20,0 kg

30 W

180 W

50,0 kg

5500 VA

30 W

170 W

60,0 kg

35 W

260 W

85,0 kg

10 kVA

55 W

220 W

80,0 kg

60 W

370 W

110,0 kg

12 kVA

80 W

250 W

120,0 kg

90 W

380 W

130,0 kg

15 kVA

90 W

310 W

130,0 kg

120 W

470 W

150,0 kg

17 kVA

100 W

340 W

140,0 kg

140 W

500 W

160,0 kg

Technical changes and optimisation reserved. All details are guide values, variations are possible.

10/2016
