1-AC-toroidal auto transformer conform to EN 61558-2-13 from 110 V to 230 V (230 V to 110 V) and a power of 1000 VA up to 20000 VA
|
|

|
|
|
|
|
|
|

|
|
|
Field of application
|
|
|
Toroidal autotransformers enable the working of 230 V (110 V) units at 110 V (230 V) supply voltage.
|
|
|
Description
|
|
|

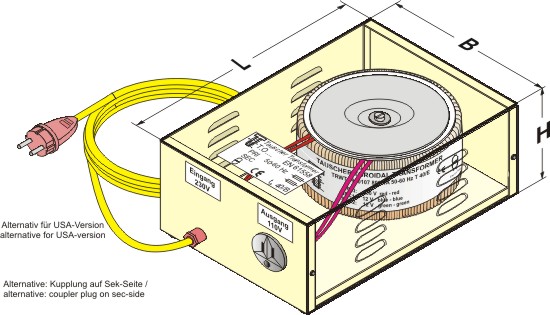

Toroidal autotransformers built in a housing IP 23
The windings are connected, no galvanic isolation
Double power with the same size of an isolation transformer
For critical appliance circuits you have to check the phase position of net against the protective earthing conductor.
|
|
|
Special types
|
|
|
Other primary or secondary voltages
Three phase type
|
|
|
Technical data
|
|
|
1 AC-toroidal auto transformer
Voltage primary 230 V (110 V) and secondary 110 V (230 V)
Frequency 47 - 63 Hz
Primary and secondary connected
Coated steel housing, colour RAL 7032, grey
Temperature class: B
max. ambient temperature: 40°C
Fire class: UL94 V0
Toroidal transformer class IP 23

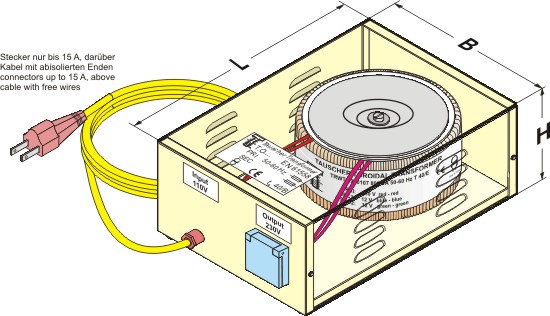

Terminals: primary 2m supply cable, secondary socket outlet without PE
Alternative: PG cable coupling, block terminals inside
Plug NEMA 6-15 up to 15 A, NEMA 6-20 up to 20 A, furthermore cable connectors with stripped ends
|
|
|
Table
|
|
|
Type
|
Secondary
power
|
Efficiency
|
Voltage
|
Dimensions in mm
|
Copper
weight
|
Total
weight
|
|
pri
|
sek
|
L
|
B
|
H
|
|
RAU
|
1000 VA
|
96 %
|
110 V
|
230 V
|
183
|
183
|
152
|
1,90 kg
|
4,65 kg
|
|
RAU
|
1200 VA
|
96 %
|
110 V
|
230 V
|
183
|
183
|
152
|
1,95 kg
|
5,35 kg
|
|
RAU
|
1400 VA
|
96 %
|
110 V
|
230 V
|
183
|
183
|
152
|
2,24 kg
|
5,50 kg
|
|
RAU
|
1600 VA
|
97 %
|
110 V
|
230 V
|
183
|
183
|
152
|
2,50 kg
|
6,85 kg
|
|
RAU
|
1800 VA
|
97 %
|
110 V
|
230 V
|
183
|
183
|
152
|
3,00 kg
|
7,70 kg
|
|
RAU
|
2000 VA
|
97 %
|
110 V
|
230 V
|
183
|
183
|
152
|
3,50 kg
|
8,15 kg
|
|
RAU
|
2000 VA
|
97 %
|
110 V
|
230 V
|
254
|
222
|
192
|
3,50 kg
|
10,6 kg
|
|
RAU
|
2400 VA
|
97 %
|
110 V
|
230 V
|
254
|
222
|
192
|
4,40 kg
|
10,6 kg
|
|
RAU
|
3000 VA
|
97 %
|
110 V
|
230 V
|
254
|
222
|
192
|
4,60 kg
|
11,6 kg
|
|
RAU
|
4000 VA
|
97 %
|
110 V
|
230 V
|
254
|
222
|
192
|
7,50 kg
|
17,1 kg
|
|
RAU
|
6000 VA
|
97 %
|
110 V
|
230 V
|
398
|
280
|
280
|
10,0 kg
|
22,3 kg
|
|
RAU
|
9400 VA
|
97 %
|
110 V
|
230 V
|
398
|
280
|
280
|
14,0 kg
|
30,8 kg
|
|
RAU
|
13600 VA
|
97 %
|
110 V
|
230 V
|
478
|
350
|
300
|
20,0 kg
|
44,6 kg
|
|
RAU
|
20000 VA
|
98 %
|
110 V
|
230 V
|
556
|
380
|
300
|
24,0 kg
|
79,2 kg
|
|
|
|
RAE
|
1000 VA
|
96 %
|
230 V
|
110 V
|
183
|
183
|
152
|
1,90 kg
|
4,65 kg
|
|
RAE
|
1200 VA
|
96 %
|
230 V
|
110 V
|
183
|
183
|
152
|
1,95 kg
|
5,35 kg
|
|
RAE
|
1400 VA
|
96 %
|
230 V
|
110 V
|
183
|
183
|
152
|
2,24 kg
|
5,50 kg
|
|
RAE
|
1600 VA
|
97 %
|
230 V
|
110 V
|
183
|
183
|
152
|
2,50 kg
|
6,85 kg
|
|
RAE
|
1800 VA
|
97 %
|
230 V
|
110 V
|
183
|
183
|
152
|
3,00 kg
|
7,70 kg
|
|
RAE
|
2000 VA
|
97 %
|
230 V
|
110 V
|
183
|
183
|
152
|
3,50 kg
|
8,15 kg
|
|
RAE
|
2000 VA
|
97 %
|
230 V
|
110 V
|
254
|
222
|
192
|
3,50 kg
|
10,6 kg
|
|
RAE
|
2400 VA
|
97 %
|
230 V
|
110 V
|
254
|
222
|
192
|
4,40 kg
|
10,6 kg
|
|
RAE
|
3000 VA
|
97 %
|
230 V
|
110 V
|
254
|
222
|
192
|
4,60 kg
|
11,6 kg
|
|
RAE
|
4000 VA
|
97 %
|
230 V
|
110 V
|
254
|
222
|
192
|
7,50 kg
|
17,1 kg
|
|
RAE
|
6000 VA
|
97 %
|
230 V
|
110 V
|
398
|
280
|
280
|
10,0 kg
|
22,3 kg
|
|
RAE
|
9400 VA
|
97 %
|
230 V
|
110 V
|
398
|
280
|
280
|
14,0 kg
|
30,8 kg
|
|
RAE
|
13600 VA
|
97 %
|
230 V
|
110 V
|
478
|
350
|
300
|
20,0 kg
|
44,6 kg
|
|
RAE
|
20000 VA
|
98 %
|
230 V
|
110 V
|
556
|
380
|
300
|
24,0 kg
|
79,2 kg
|
|
Technical changes and optimisation reserved. All details are guide values, variations are possible.
|
02/2012
|
|
|
|
|
