Toroidal isolating transformer 500 VA up to 10000 VA


Datasheet as PDF
Toroidal isolating transformer conform to EN 61558-2-4 and 2-6 with a test voltage of 5000 V / 50 Hz pri - sec and a power of 500 VA up to 10 kVA

ceenergyclass_Hsymb-RoHsvdeEN61558-o-smsymb-schutzisoliert


Toroidal isolating transformer in a housing 500 VA up to 10000 VA
Toroidal isolating transformer in a housing 500 VA up to 10000 VA
Toroidal isolating transformer in a housing 500 VA up to 10000 VA


Field of application


Toroidal isolating transformers are used to supply loads, which need a safe insulation and an interference suppression from the net.


Description


Toroidal isolating transformer, built in a housing IP 23
Toroidal transformer for safety separation of voltages
The windings have a low capacity construction
Windings with screening
Low leakage current and high insulation resistance
Good attenuation properties against high frequency and voltage peaks
Low magnetic stray field
Insulant housing with carry handle


Special types


Other primary- or secondary voltages
Other insulating voltages
Three-phase type


Technical data


1 AC-toroidal isolating transformer
voltage range primary 230 V (TT-net system) and secondary 230 V
Screen: static screen between pri and sec
Frequency: 47 - 63 Hz

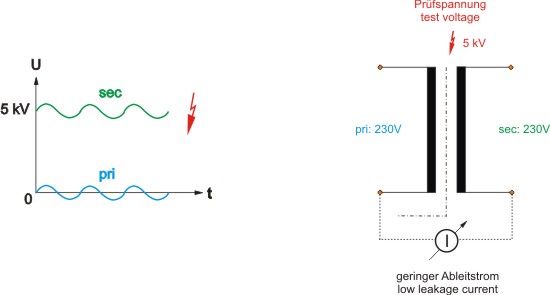

Test voltage primary - secondary: 5000 V / 50 Hz
Coated steel housing, colour RAL 7032, grey
Temperature class conform to IEC: B
max. ambient temperature: 40°C
Fire class: UL94 V0
Open toroidal transformer class IP 23
Terminals: primary 2m supply cable, secondary socket outlet without PE
Alternative: PG cable coupling, block terminals inside


Table


Secondary
power

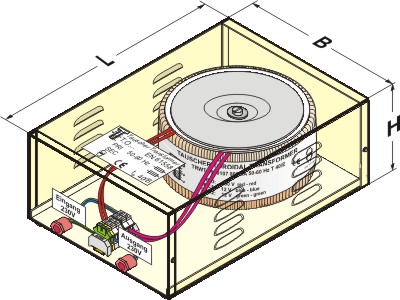

Dimensions

Efficiency

Noload
current

Voltage factor
U0/UL

Copper
weight

Total
weight

L

B

H

500 VA

183

183

152

96 %

25 mA

1,05

1,90 kg

4,65 kg

600 VA

183

183

152

96 %

28 mA

1,05

1,95 kg

5,35 kg

700 VA

183

183

152

96 %

30 mA

1,05

2,24 kg

5,50 kg

800 VA

183

183

152

97 %

32 mA

1,04

2,50 kg

6,85 kg

900 VA

183

183

152

97 %

40 mA

1,04

3,00 kg

7,70 kg

1000 VA

183

183

152

97 %

50 mA

1,04

3,50 kg

8,15 kg

1000 VA

254

222

192

97 %

50 mA

1,04

3,50 kg

10,6 kg

1200 VA

254

222

192

97 %

60 mA

1,03

4,40 kg

10,6 kg

1500 VA

254

222

192

97 %

70 mA

1,03

4,60 kg

11,6 kg

2000 VA

298

220

220

97 %

80 mA

1,03

7,50 kg

17,1 kg

2000 VA

298

220

220

97 %

80 mA

1,03

7,50 kg

18,6 kg

3000 VA

398

280

280

97 %

100 mA

1,03

10,0 kg

22,3 kg

4700 VA

398

280

280

97 %

300 mA

1,03

14,0 kg

30,8 kg

6800 VA

478

350

300

97 %

400 mA

1,03

20,0 kg

44,6 kg

10000 VA

556

380

300

98 %

450 mA

1,02

24,0 kg

79,2 kg

Technical changes and optimisation reserved. All details are guide values, variations are possible.

12/2012
