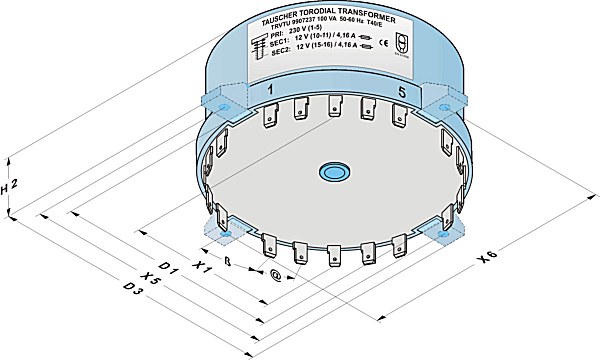

Potted toroidal transformer (TRVTU) in a round housing type VR
Plug size: 2,8 x 0,8 mm, 4,8 x 0,8 mm, 6,3 x 0,8 mm or pins 1,1 x 0,8 mm
|
|

|
|
|
|
|
|
Table
|
|
|
Power
|
Dimensions
|
Mounting holes
|
Central hole
|
Sagging
|
Contact spacing
X1
|
Plug distance
|
Number of
plugs
|
Total
weight
|
|
D1
|
H2
|
D3
|
X5
|
X6
|
ß
|
@
|
|
15 VA
|
70
|
40
|
96
|
84,3
|
84,3
|
5,1
|
SW 8
|
64
|
22,5°
|
22,5°
|
12
|
0,35 kg
|
|
30 VA
|
90
|
44
|
116
|
105
|
105
|
6,1
|
SW 10
|
83,6
|
22,5°
|
15°
|
16
|
0,58 kg
|
|
40 VA
|
90
|
44
|
116
|
105
|
105
|
6,1
|
SW 10
|
83,6
|
22,5°
|
15°
|
16
|
0,75 kg
|
|
50 VA
|
90
|
44
|
116
|
105
|
105
|
6,1
|
SW 10
|
83,6
|
22,5°
|
15°
|
16
|
0,80 kg
|
|
80 VA
|
111
|
54
|
136,5
|
125,3
|
125,3
|
8,1
|
SW 13
|
104
|
15°
|
15°
|
20
|
1,10 kg
|
|
100 VA
|
111
|
54
|
136,5
|
125,3
|
125,3
|
8,1
|
SW 13
|
104
|
15°
|
15°
|
20
|
1,35 kg
|
|
120 VA
|
111
|
54
|
136,5
|
125,3
|
125,3
|
8,1
|
SW 13
|
104
|
15°
|
15°
|
20
|
1,45 kg
|
|
Technical changes and optimisation reserved. All details are guide values, variations are possible.
|
02/2012
|
|
|
|
|
