Datasheet as PDF

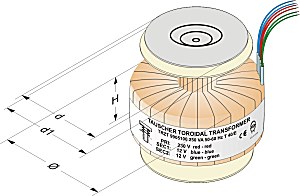

Open toroidaltransformers (TRZT) with disc mounting from 15 VA up to 10000 VA
Delivered with one steel ring and two rubber rings
Also possible in temperatureclass H, for instance BV 2305000
|
|

|
|
|
|
Power
|
Steel
ring
|
Rubber
ring
|
|
|
15 - 20 VA
|
Ø 43
|
Ø 50
|
H + 3,0
|
|
30 VA
|
Ø 50
|
Ø 60
|
H + 3,0
|
|
50 - 80 VA
|
Ø 60
|
Ø 70
|
H + 5,5
|
|
100 - 150 VA
|
Ø 70
|
Ø 80
|
H + 5,5
|
|
200 - 400 VA
|
Ø 90
|
Ø 100
|
H + 5,5
|
|
500 - 1000 VA
|
Ø 110
|
Ø 120
|
H + 5,5
|
|
ab 1200 VA
|
Ø 125
|
Ø 155
|
H + 5,5
|
|
|
|
|
Table
|
|
|
Secondary
power
|
Dimensions
in mm ± 3%
|
Height without
mounting components
|
Efficiency
|
No load current
I0 ± 10 %
|
Voltage factor
U0/UL
|
Copper
weight
|
Total
weight
|
|
15 VA
|
Ø 59
|
H 29
|
80 %
|
6 mA
|
1,17
|
0,10 kg
|
0,33 kg
|
|
20 VA
|
Ø 60
|
H 30
|
82 %
|
6 mA
|
1,17
|
0,17 kg
|
0,44 kg
|
|
30 VA
|
Ø 74
|
H 30
|
84 %
|
6 mA
|
1,16
|
0,18 kg
|
0,53 kg
|
|
40 VA
|
Ø 76
|
H 35
|
88 %
|
8 mA
|
1,14
|
0,25 kg
|
0,69 kg
|
|
50 VA
|
Ø 79
|
H 37
|
88 %
|
8 mA
|
1,14
|
0,26 kg
|
0,73 kg
|
|
80 VA
|
Ø 90
|
H 38
|
90 %
|
10 mA
|
1,11
|
0,40 kg
|
1,01 kg
|
|
100 VA
|
Ø 92
|
H 43
|
93 %
|
10 mA
|
1,11
|
0,45 kg
|
1,25 kg
|
|
120 VA
|
Ø 95
|
H 46
|
92 %
|
11 mA
|
1,10
|
0,48 kg
|
1,35 kg
|
|
150 VA
|
Ø 96
|
H 50
|
93 %
|
12 mA
|
1,09
|
0,64 kg
|
1,64 kg
|
|
200 VA
|
Ø 115
|
H 50
|
94 %
|
15 mA
|
1,08
|
0,71 kg
|
2,04 kg
|
|
225 VA
|
Ø 116
|
H 52
|
94 %
|
16 mA
|
1,07
|
0,86 kg
|
2,23 kg
|
|
250 VA
|
Ø 117
|
H 60
|
94 %
|
17 mA
|
1,07
|
0,92 kg
|
2,57 kg
|
|
300 VA
|
Ø 125
|
H 62
|
94 %
|
18 mA
|
1,06
|
1,24 kg
|
2,97 kg
|
|
400 VA
|
Ø 132
|
H 61
|
95 %
|
20 mA
|
1,06
|
1,66 kg
|
3,73 kg
|
|
500 VA
|
Ø 142
|
H 71
|
96 %
|
25 mA
|
1,05
|
1,90 kg
|
4,23 kg
|
|
600 VA
|
Ø 140
|
H 80
|
96 %
|
28 mA
|
1,05
|
1,95 kg
|
4,84 kg
|
|
700 VA
|
Ø 145
|
H 86
|
96 %
|
30 mA
|
1,05
|
2,24 kg
|
4,95 kg
|
|
800 VA
|
Ø 173
|
H 70
|
97 %
|
32 mA
|
1,04
|
2,50 kg
|
6,20 kg
|
|
900 VA
|
Ø 173
|
H 78
|
97 %
|
40 mA
|
1,04
|
3,00 kg
|
7,00 kg
|
|
1000 VA
|
Ø 175
|
H 78
|
97 %
|
50 mA
|
1,04
|
3,50 kg
|
7,40 kg
|
|
1000 VA
|
Ø 200
|
H 70
|
97 %
|
50 mA
|
1,04
|
3,50 kg
|
9,60 kg
|
|
1200 VA
|
Ø 200
|
H 75
|
97 %
|
60 mA
|
1,03
|
4,40 kg
|
9,60 kg
|
|
1500 VA
|
Ø 210
|
H 84
|
97 %
|
70 mA
|
1,03
|
4,60 kg
|
10,5 kg
|
|
2000 VA
|
Ø 220
|
H 100
|
97 %
|
80 mA
|
1,03
|
7,50 kg
|
15,5 kg
|
|
2000 VA
|
Ø 200
|
H 110
|
97 %
|
80 mA
|
1,03
|
7,50 kg
|
16,9 kg
|
|
3000 VA
|
Ø 248
|
H 113
|
97 %
|
100 mA
|
1,03
|
10,0 kg
|
20,3 kg
|
|
4000 VA
|
Ø 266
|
H 100
|
97 %
|
300 mA
|
1,03
|
12,0 kg
|
28,0 kg
|
|
4700 VA
|
Ø 272
|
H 100
|
97 %
|
300 mA
|
1,03
|
14,0 kg
|
28,0 kg
|
|
6800 VA
|
Ø 320
|
H 100
|
97 %
|
400 mA
|
1,03
|
20,0 kg
|
40,5 kg
|
|
10000 VA
|
Ø 350
|
H 150
|
98 %
|
450 mA
|
1,02
|
24,0 kg
|
72,0 kg
|
|
Technical changes and optimisation reserved. All details are guide values, variations are possible.
Other dimensions and technical changes on request.
|
04/2020
|
|
|
|
|
