Alternative terminals l2 + 20 mm / h1 + 4 mm

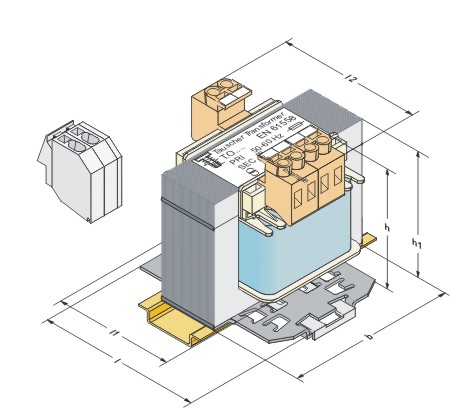

EI transformers welded with terminals and snap-in function for top-hat rails TS 35
|
|

|
|
|
|
|
|
Alternative version
|
|
|
Terminals:
Block terminals with mini fuse up to 6,3 A
Flat plugs: 6,3 x 0,8 mm oder 2 x 2,8 x 0,8 mm
up to EI 96 bobbins for print or flat plugs 2,8 - 4,8 - 6,3 mm
free wires
litz wires with ferrule
faston receptacle 2,8 - 4,8 - 6,3 mm
round plugs
ring cable lug
customer specified plugs
|
|
|
Table
|
|
|
Type
|
Type size
|
Sec
power
|
Efficiency
|
Dimensions in mm
|
Number of
terminals
|
Copper
weight
|
Total
weight
|
|
b
|
l
|
l1
|
l2
|
h1
|
h
|
|
TEO
|
EI 60/21
|
22 VA
|
77 %
|
61,0
|
79,5
|
49,5
|
63,0
|
73,0
|
54,9
|
2 x 5
|
96 g
|
0,55 kg
|
|
TEO
|
EI 60/21 S
|
25 VA
|
81 %
|
61,0
|
79,5
|
49,5
|
63,0
|
73,0
|
54,9
|
2 x 5
|
96 g
|
0,55 kg
|
|
TEO
|
EI 60/30,5
|
33 VA
|
80 %
|
61,0
|
79,5
|
59,0
|
72,5
|
73,0
|
54,9
|
2 x 5
|
130 g
|
0,67 kg
|
|
TEO
|
EI 60/30,5 S
|
37 VA
|
83 %
|
61,0
|
79,5
|
59,0
|
72,5
|
73,0
|
54,9
|
2 x 5
|
130 g
|
0,67 kg
|
|
TEO
|
EI 66/23
|
31 VA
|
81 %
|
67,0
|
79,5
|
53,0
|
65,0
|
79,0
|
59,5
|
2 x 5
|
140 g
|
0,70 kg
|
|
TEO
|
EI 66/23 S
|
35 VA
|
83 %
|
67,0
|
79,5
|
53,0
|
65,0
|
79,0
|
59,5
|
2 x 5
|
140 g
|
0,70 kg
|
|
TEO
|
EI 66/36,2
|
49 VA
|
83 %
|
67,0
|
79,5
|
66,0
|
78,0
|
79,0
|
59,5
|
2 x 5
|
200 g
|
1,1 kg
|
|
TEO
|
EI 66/36,2 S
|
56 VA
|
86 %
|
67,0
|
79,5
|
66,0
|
78,0
|
79,0
|
59,5
|
2 x 5
|
200 g
|
1,1 kg
|
|
TEO
|
EI 78/27,5
|
60 VA
|
84 %
|
79,0
|
79,5
|
59,5
|
70,0
|
88,0
|
69,5
|
2 x 6
|
230 g
|
1,2 kg
|
|
TEO
|
EI 78/27,5 S
|
70 VA
|
87 %
|
79,0
|
79,5
|
59,5
|
70,0
|
88,0
|
69,5
|
2 x 6
|
230 g
|
1,2 kg
|
|
TEO
|
EI 78/36,5
|
77 VA
|
85 %
|
79,0
|
79,5
|
68,0
|
79,0
|
88,0
|
69,5
|
2 x 6
|
245 g
|
1,5 kg
|
|
TEO
|
EI 78/36,5 S
|
90 VA
|
88 %
|
79,0
|
79,5
|
68,0
|
79,0
|
88,0
|
69,5
|
2 x 6
|
245 g
|
1,5 kg
|
|
TEO
|
EI 84/29,5
|
80 VA
|
86 %
|
85,0
|
79,5
|
64,0
|
72,0
|
93,0
|
74,5
|
2 x 7
|
300 g
|
1,5 kg
|
|
TEO
|
EI 84/29,5 S
|
90 VA
|
88 %
|
85,0
|
79,5
|
64,0
|
72,0
|
93,0
|
74,5
|
2 x 7
|
300 g
|
1,5 kg
|
|
TEO
|
EI 84/43,5
|
110 VA
|
87 %
|
85,0
|
79,5
|
76,0
|
86,0
|
93,0
|
74,5
|
2 x 7
|
325 g
|
2,1 kg
|
|
TEO
|
EI 84/43,5 S
|
130 VA
|
90 %
|
85,0
|
79,5
|
76,0
|
86,0
|
93,0
|
74,5
|
2 x 7
|
325 g
|
2,1 kg
|
|
TEO
|
EI 84/52
|
130 VA
|
88 %
|
85,0
|
79,5
|
84,5
|
94,5
|
93,0
|
74,5
|
2 x 7
|
370 g
|
2,4 kg
|
|
TEO
|
EI 84/52 S
|
155 VA
|
91 %
|
85,0
|
79,5
|
84,5
|
94,5
|
93,0
|
74,5
|
2 x 7
|
370 g
|
2,4 kg
|
|
TEO
|
EI 96/35,7
|
140 VA
|
88 %
|
97,0
|
81,5
|
81,0
|
78,0
|
104,0
|
86,5
|
2 x 8
|
475 g
|
2,3 kg
|
|
TEO
|
EI 96/35,7 S
|
160 VA
|
91 %
|
97,0
|
81,5
|
81,0
|
78,0
|
104,0
|
86,5
|
2 x 8
|
475 g
|
2,3 kg
|
|
TEO
|
EI 96/45,7
|
170 VA
|
90 %
|
97,0
|
81,5
|
88,3
|
88,0
|
104,0
|
86,5
|
2 x 8
|
570 g
|
2,9 kg
|
|
TEO
|
EI 96/45,7 S
|
210 VA
|
92 %
|
97,0
|
81,5
|
88,3
|
88,0
|
104,0
|
86,5
|
2 x 8
|
570 g
|
2,9 kg
|
|
TEO
|
EI 96/59,7
|
215 VA
|
90 %
|
97,0
|
81,5
|
105,0
|
102,0
|
104,0
|
86,5
|
2 x 8
|
600 g
|
3,6 kg
|
|
TEO
|
EI 96/59,7 S
|
250 VA
|
93 %
|
97,0
|
81,5
|
105,0
|
102,0
|
104,0
|
86,5
|
2 x 8
|
600 g
|
3,6 kg
|
|
Technical changes and optimisation reserved. All details are guide values, variations are possible.
|
03/2012
|
|
|
|
|
