One phase transformer with current inrush avoider


Datasheet as PDF
One phase safety and isolating transformers conform to EN 61558-2-4 and 2-6 or autotransformers conform to EN 61558-2-13 (TEG.E.)
One phase transformers 500 VA up to 10000 VA in a housing and with current inrush avoider

cevdeenergyEN61558-o-sm


One phase transformer with current inrush avoider


Technical information


The current inrush avoider is better than a current inrush limiter or a start-up peak limiter. The start-up current peak will be avoided by an intelligent electronic circuit. So it is possible to take a fuse with the nominal value of the primary current. Further information about “current inrush avoider” see also datasheet, manual and application.


Table


Type

Type size

Sec
power

Efficiency

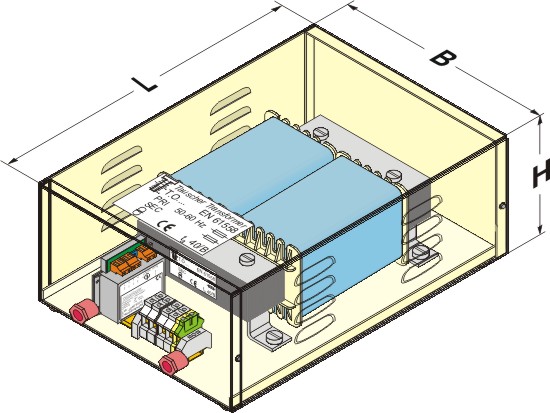

Dimensions in mm

Copper
weight

Total
weight

L

B

H

TEG.E.

UI 90/51,5

500 VA

92 %

183

183

183

2,1 kg

7,8 kg

TEG.E.

UI 90/51,5 S

630 VA

93 %

183

183

183

2,1 kg

7,8 kg

TEG.E.

UI 102/57 S

800 VA

94 %

254

222

192

2,55 kg

10,4 kg

TEG.E.

UI 120/41 S

1000 VA

94 %

254

222

192

3,8 kg

12,0 kg

TEG.E.

UI 120/51 S

1200 VA

95 %

254

222

192

4,5 kg

14,2 kg

TEG.E.

UI 120/71 S

1600 VA

96 %

254

222

192

5,2 kg

18,1 kg

TEG.E.

UI 132/72 S

2000 VA

96 %

314

224

191

5,8 kg

22,0 kg

TEG.E.

UI 150/77 S

3000 VA

96 %

314

224

191

9,1 kg

31,0 kg

TEG.E.

UI 180/93 S

5000 VA

97 %

398

280

280

16,2 kg

53,6 kg

TEG.E.

UI 210/63 S

6000 VA

97 %

478

350

300

25,6 kg

62,0 kg

TEG.E.

UI 210/88 S

8000 VA

97 %

478

350

300

28,5 kg

78,0 kg

TEG.E.

UI 240/83 S

10000 VA

98 %

478

350

300

42,0 kg

103,0 kg

Technical changes and optimisation reserved. All details are guide values, variations are possible.
