Isolating transformer 5kV 120VA up to 500VA

Isolating transformers conform to EN61558-2-4 with 5000V 50Hz test voltage pri - sec and a power of 120 VA up to 500 VA
Datasheet as PDF

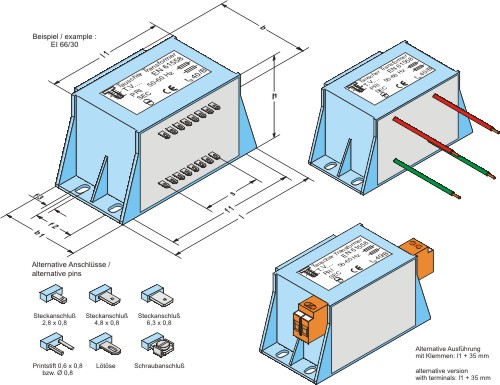

EI120

EI96

Field of application

Isolating transformers are used to supply loads, which must have a safe insulation and an interference suppression from the mains.

Description

Isolating transformers in solid construction, completely potted under vacuum with highly insulating polyurethane cast resin.
The windings are done in a low capacity construction. Windings have a screening.
Low leakage current and high insulation resistance.
Good attenuation characteristics against HF disturbances and voltage peaks.
Low magnetic strayfield.
Enclosed in an insulation housing with handle.


Special types

• other primary- or secondary-voltages
• other insulating voltages
• three phase construction

Table
