Control transforers 63VA up to 2500VA
|
|
Low inrush current, control-safety isolating and isolation transformer
mounted on mounting angles
|
|

|
|
|
|
Field of application
|
|
Control transformers conform to IEC/EN61558-2-2
for power supply in control circuits, distribution circuits, machines and so on conform to VDE00113/EN60204,
Isolation transformer conform to IEC/EN61558-2-4
for general purpose, e.g safe isolation for devices conform to VDE0700/EN60335
Safety isolation transformer conform to IEC/EN61558-2-6
for general pupose with double or enlarged isolation and a max. voltage of 50V, e.g. for safe isolation for devices conform to VDE0805/EN60950.
|
|
|
|
Description
|
|
This range fulfills the requirements of control-, safety- and isolating transforemrs. Inrush currents and short circuit functions of teh transformers are conform to protective mjotor switches with magnetic rapid release.
On the primary side are the worldwide voltages 230V and 400V conform to DIN IEC 60038. Primary tappigns with +-15V help to adapt other voltages. The transformers have a protection against humidity. The block terminals are shock proof conform to VBG4
The mounting can be done either with mounting agles for screw type terminals or panel installation on mounting rails. Any mounting position is possible.
|
|
|
|
Table
|
|
|
Primary volt
|
pri: 0-230V - 400V +-15V
|
|
|
Order
number
|
Article
|
Type Power
|
Voltage Current
secondary
|
volt
factor
|
Effici-
ency
|
weight
|
copper
weight
|

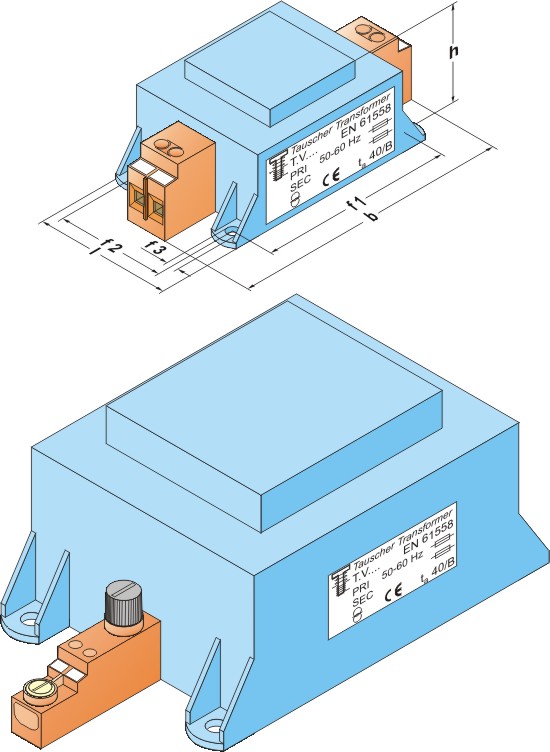

Dimensions
|
|
b
|
l
|
l1
|
l2
|
h1
|
f1
|
f2
|
f3
|
|
9908010
|
STEU 63/ 24
|
EI 84/ 29,5 63VA
|
sec: 2 x 12 V 2,6 A
|
10 %
|
86 %
|
1,5
|
0,30
|
85
|
60
|
64
|
72
|
93
|
51,5
|
64
|
M4
|
PDF
|
|
9908020
|
STEU 100/ 24
|
EI 84/ 43,5 100VA
|
sec: 2 x 12 V 4,2 A
|
7 %
|
86 %
|
2,1
|
0,33
|
85
|
74
|
76
|
86
|
93
|
63,5
|
64
|
M4
|
PDF
|
|
9908030
|
STEU 160/ 24
|
EI 96/ 45,7 160VA
|
sec: 2 x 12 V 6,7 A
|
10 %
|
86 %
|
2,9
|
0,57
|
97
|
80
|
88
|
88
|
104
|
72,6
|
84
|
M5
|
PDF
|
|
9908040
|
STEU 250/ 24
|
EI 96/ 59,7 250VA
|
sec: 2 x 12 V 10,4 A
|
7 %
|
86 %
|
3,6
|
0,60
|
97
|
94
|
105
|
102
|
104
|
89,8
|
84
|
M5
|
PDF
|
|
9908050
|
STEU 320/ 24
|
EI120/ 41,7 320VA
|
sec: 2 x 12 V 13,3 A
|
8 %
|
90 %
|
4,2
|
0,89
|
121
|
88
|
91
|
102
|
121
|
73
|
90
|
M5
|
PDF
|
|
9908060
|
STEU 400/ 24
|
EI120/ 53,5 400VA
|
sec: 2 x 12 V 16,7 A
|
5 %
|
92 %
|
5,2
|
0,97
|
121
|
100
|
104
|
114
|
121
|
85
|
90
|
M5
|
PDF
|
|
9908070
|
STEU 500/ 24
|
EI120/ 73,7 500VA
|
sec: 2 x 12 V 20,8 A
|
5 %
|
92 %
|
7,0
|
1,2
|
121
|
120
|
124
|
134
|
121
|
106
|
90
|
M5
|
PDF
|
|
9908110
|
STEU 63/230
|
EI 84/ 29,5 63VA
|
sec: 2 x115 V 0,27 A
|
10 %
|
86 %
|
1,5
|
0,30
|
85
|
60
|
64
|
72
|
93
|
51,5
|
64
|
M4
|
PDF
|
|
9908120
|
STEU 100/230
|
EI 84/ 43,5 100VA
|
sec: 2 x115 V 0,43 A
|
7 %
|
86 %
|
2,1
|
0,33
|
85
|
74
|
76
|
86
|
93
|
63,5
|
64
|
M4
|
PDF
|
|
9908130
|
STEU 160/230
|
EI 96/ 45,7 160VA
|
sec: 2 x115 V 0,69 A
|
10 %
|
86 %
|
2,9
|
0,57
|
97
|
80
|
88
|
88
|
104
|
72,6
|
84
|
M5
|
PDF
|
|
9908140
|
STEU 250/230
|
EI 96/ 59,7 250VA
|
sec: 2 x115 V 1,09 A
|
7 %
|
86 %
|
3,6
|
0,60
|
97
|
94
|
105
|
102
|
104
|
89,8
|
84
|
M5
|
PDF
|
|
9908150
|
STEU 320/230
|
EI120/ 41,7 320VA
|
sec: 2 x115 V 1,39 A
|
8 %
|
90 %
|
4,2
|
0,89
|
121
|
88
|
91
|
102
|
121
|
73
|
90
|
M5
|
PDF
|
|
9908160
|
STEU 400/230
|
EI120/ 53,5 400VA
|
sec: 2 x115 V 1,73 A
|
5 %
|
92 %
|
5,2
|
0,97
|
121
|
100
|
104
|
114
|
121
|
85
|
90
|
M5
|
PDF
|
|
9908170
|
STEU 500/230
|
EI120/ 73,7 500VA
|
sec: 2 x115 V 2,17 A
|
5 %
|
92 %
|
7,0
|
1,2
|
121
|
120
|
124
|
134
|
121
|
106
|
90
|
M5
|
PDF
|
|
9908180
|
STEU 630/230
|
EI150N/ 49,6 630VA
|
sec: 2 x115 V 2,73 A
|
4 %
|
94 %
|
7,8
|
1,7
|
150
|
107
|
104
|
112
|
145
|
84
|
122
|
M6
|
PDF
|
|
9908190
|
STEU 800/230
|
EI150N/ 66,6 800VA
|
sec: 2 x115 V 3,47 A
|
4 %
|
95 %
|
10,0
|
1,8
|
150
|
124
|
121
|
129
|
145
|
101
|
122
|
M6
|
PDF
|
|
9908200
|
STEU1000/230
|
EI150N/ 92,6 1000VA
|
sec: 2 x115 V 4,35 A
|
3 %
|
95 %
|
13,8
|
1,9
|
150
|
150
|
147
|
155
|
145
|
127
|
122
|
M6
|
PDF
|
|
9908210
|
STEU1600/230
|
EI192/ 92 1600VA
|
sec: 2 x115 V 6,95 A
|
1 %
|
94 %
|
20,4
|
4,2
|
192
|
154
|
190
|
186
|
181
|
161
|
156
|
M8
|
PDF
|
|
9908220
|
STEU2000/230
|
EI192/104 2000VA
|
sec: 2 x115 V 8,70 A
|
1 %
|
96 %
|
23,2
|
4,2
|
192
|
176
|
184
|
182
|
181
|
155
|
156
|
M8
|
PDF
|
|
9908230
|
STEU2500/230
|
EI192/110 2500VA
|
sec: 2 x115 V 10,90 A
|
2 %
|
96 %
|
25,6
|
4,2
|
192
|
182
|
190
|
186
|
181
|
161
|
156
|
M8
|
PDF
|
|
|
|
Dimensions are guidlines and may differ.
|
|
Technical changes and optimization reserved
|
|
|
|
|
|
