Three-phase transformer in a housing


Datasheet as PDF
16 kVA up to 250 kVA, three-phase transformers with cooling channels, three-phase power dry transformers, three-phase isolating transformers in a metal housing IP 23, cast resin transformer

ceclass_HEN61558-o-sm61558_okf-sm


Three-phase transformer


Fields of application


Transformer conform to IEC/EN 60076 VDE 0532 to transform the medium voltage 6 kV or 10 kV to 0,4 kV by using vector group Dyn11.


Description


Three-phase transformer in a housing IP 23, built as an isolation transformer conform to EN 61558-2-4. Basically this type size can be built in any vector group. If there is no vector group given, we use Dyn5 as default (star point can have full load from the outside conductor).
Please consider the difference between outside conductor voltage and phase voltage to star point at the different vector groups.
The housings are prepared for floor mounting. As cable bushing we use PG cable glands.
For a safe and easy transport, the transformers have crane hooks at the upper side.
Tauscher cast resin transformers need less space than comparable oil transformers. The transformers work without maintenance, they are flame-retardant and self-extinguishing. The insulation of the coils is made of environmental friendly polyurethane or epoxy cast resin.


Table


Type size

Sec
power

Efficiency

Iron
losses

Copper
losses

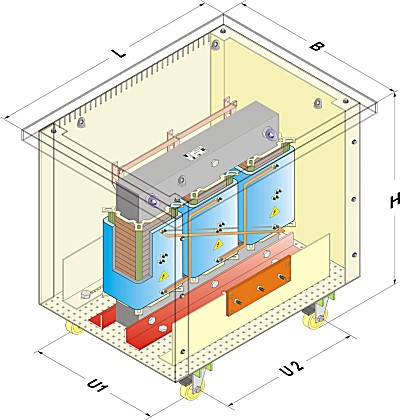

Dimensions in mm

Copper
weight

Total
weight

b

l

h

U1

U2

EI 350/350/103

16 kVA

96,2 %

169 W

444 W

610

540

560

430

360

21 kg

115 kg

EI 400/400/83

25 kVA

97,1 %

175 W

553 W

770

540

560

590

360

54 kg

163 kg

EI 500/500/100

40 kVA

97,4 %

322 W

724 W

840

540

800

660

360

64 kg

245 kg

EI 500/500/125

50 kVA

97,8 %

401 W

690 W

840

540

800

660

360

81 kg

309 kg

EI 500/500/150

63 kVA

98,0 %

483 W

750 W

940

640

800

760

460

102 kg

364 kg

EI 500/500/200

100 kVA

98,2 %

643 W

1191 W

940

640

800

760

460

130 kg

460 kg

EI 600/600/150

125 kVA

98,1 %

685 W

1719 W

1090

590

1000

910

410

164 kg

538 kg

EI 600/600/200

160 kVA

98,3 %

912 W

1709 W

1090

590

1000

910

410

190 kg

664 kg

EI 700/700/200

200 kVA

98,4 %

1230 W

1869 W

1200

790

1100

1020

610

233 kg

854 kg

EI 700/700/250

250 kVA

98,6 %

1540 W

1946 W

1200

790

1100

1020

610

306 kg

1071 kg

Technical changes and optimisation reserved. All details are guide values, variations are possible.

04/2013
