16 kVA up to 250 kVA, 6 kV, 10 kV, three-phase transformer with cooling channels, three-phase power dry transformer, three-phase isolating transformer, cast resin transformer
|
|

|
|
|
|
|
|
Fields of application
|
|
|
Isolating transformer conform to IEC/EN 60076 VDE 0532 to transform the medium voltage 6 kV or 10 kV to 0,4 kV using the vector group Dyn11
|
|
|
Description
|
|
|
Three-phase transformer, built as an isolation transformer conform to EN 61558-2-4, prepared for protection index I. Basically this type size can be built in any vector group. If there is no vector group given, we use Dyn5 as default (star point can have full load from the outside conductor).
Please consider the difference between outside conductor voltage and phase voltage to star point at the different vector groups.
The position of installation needs to chosen properly, a natural convection through the cooling channels has to be possible.
For a safe and easy transport, the transformers have crane hooks at the upper side.
Tauscher cast resin transformers need less space than comparable oil transformers. The transformers work without maintenance, they are flame-retardant and self-extinguishing. The insulation of the coils is made of environmental friendly polyurethane or epoxy cast resin.
|
|
|
Table
|
|
|
Type size
|
Sec
power
|
Efficiency
|
Iron
losses
|
Copper
losses
|

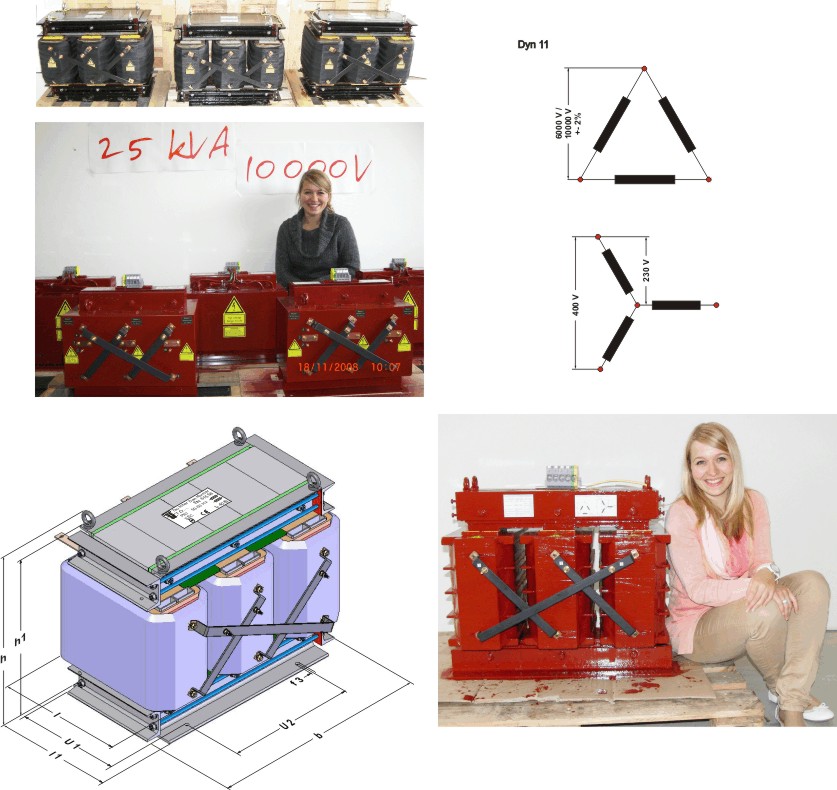

Dimensions in mm
|
Copper
weight
|
Total
weight
|
Voltage
|
|
b
|
l
|
l1
|
h
|
h1
|
U1
|
U2
|
f3
|
|
350/350/103
|
16 kVA
|
96,2 %
|
169 W
|
444 W
|
420
|
220
|
475
|
463
|
483
|
400
|
316
|
12
|
21 kg
|
100 kg
|
6/10 kV
|
|
400/400/83
|
25 kVA
|
97,1 %
|
175 W
|
553 W
|
490
|
210
|
475
|
518
|
538
|
400
|
356
|
15
|
54 kg
|
139 kg
|
6/10 kV
|
|
500/500/100
|
40 kVA
|
97,4 %
|
322 W
|
724 W
|
600
|
222
|
500
|
637
|
657
|
400
|
450
|
18
|
64 kg
|
221 kg
|
6/10 kV
|
|
500/500/125
|
50 kVA
|
97,8 %
|
401 W
|
690 W
|
600
|
232
|
620
|
637
|
667
|
520
|
450
|
18
|
81 kg
|
279 kg
|
6/10 kV
|
|
500/500/150
|
63 kVA
|
98,0 %
|
483 W
|
750 W
|
600
|
282
|
620
|
637
|
667
|
520
|
450
|
18
|
102 kg
|
340 kg
|
6/10 kV
|
|
500/500/200
|
100 kVA
|
98,2 %
|
643 W
|
1191 W
|
600
|
322
|
645
|
628
|
648
|
520
|
450
|
18
|
130 kg
|
435 kg
|
6/10 kV
|
|
600/600/150
|
125 kVA
|
98,1 %
|
685 W
|
1719 W
|
720
|
280
|
645
|
738
|
758
|
520
|
600
|
18
|
164 kg
|
500 kg
|
6/10 kV
|
|
600/600/200
|
160 kVA
|
98,3 %
|
912 W
|
1709 W
|
720
|
330
|
645
|
738
|
758
|
520
|
600
|
18
|
190 kg
|
631 kg
|
6/10 kV
|
|
700/700/200
|
200 kVA
|
98,4 %
|
1230 W
|
1869 W
|
840
|
470
|
670
|
944
|
994
|
520
|
600
|
18
|
233 kg
|
832 kg
|
6/10 kV
|
|
700/700/250
|
250 kVA
|
98,6 %
|
1540 W
|
1946 W
|
840
|
520
|
670
|
944
|
994
|
520
|
600
|
18
|
306 kg
|
1038 kg
|
6/10 kV
|
|
800/800/250
|
350 kVA
|
98,6 %
|
-
|
-
|
1100
|
500
|
-
|
850
|
-
|
-
|
-
|
-
|
587 kg
|
1550 kg
|
6/10 kV
|
|
950/950/190
|
250 kVA
|
99,0 %
|
1300 W
|
1200 W
|
1300
|
500
|
-
|
1100
|
-
|
-
|
-
|
-
|
382 kg
|
1250 kg
|
20 kV
|
|
Technical changes and optimisation reserved. All details are guide values, variations are possible.
|
05/2014
|
|
|
|
|
