Three-phase transformer 40 kVA up to 500 kVA, three-phase transformer with cooling channels in a metal housing, three-phase power dry transformer, three-phase isolating transformer in a metal housing
|
|

|
|
|
|
|
BV 1304001
|
|
|
|
|
Fields of application
|
|
|
Isolating transformer conform to IEC/EN 61558-2-4 for general purpose, e.g. as safe isolation for devices according to the requirements of VDE 0700 / EN 60335, or as net distribution transformer for TN-net systems. Suitable for potential free nets, test systems and as power-ratio transformer.
|
|
|
Description
|
|
|

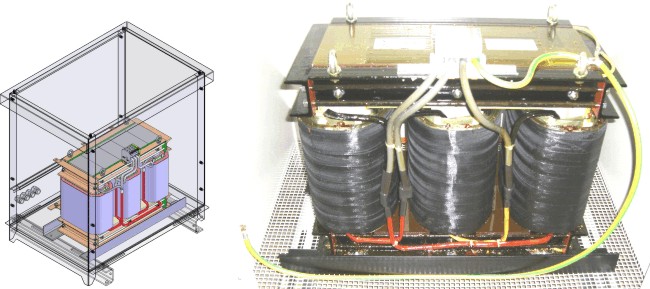

Three-phase transformer in a housing IP 23, built as an isolation transformer conform to EN 61558-2-4. Basically this type size can be built in any vector group. If there is no vector group given, we use Dyn5 as default (star point can have full load from the outside conductor).
Please consider the difference between outside conductor voltage and phase voltage to star point at the different vector groups.
The housings are prepared for floor mounting. As cable bushing we use PG cable glands.
For a safe and easy transport, the transformers have crane hooks at the upper side. The used block terminals are shock proof conform to VBG4. A vacuum varnishing makes a low hum-noise possible.
|
|
|
Table
|
|
|
Type
|
Type size
|
Sec
power
|
Efficiency
|
Iron
losses
|
Copper
losses
|

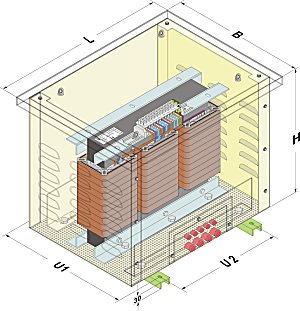

Dimensions in mm
|
Copper
weight
|
Total
weight
|
|
L
|
B
|
H
|
U1
|
U2
|
|
TEO
|
EI 500/500/100
|
40 kVA
|
97 %
|
300 W
|
1230 W
|
750
|
580
|
590
|
550
|
470-460
|
63 kg
|
192 kg
|
|
TEO
|
EI 500/500/125
|
50 kVA
|
97 %
|
380 W
|
1210 W
|
750
|
580
|
590
|
550
|
470-460
|
66 kg
|
235 kg
|
|
TEO
|
EI 500/500/150
|
63 kVA
|
97 %
|
450 W
|
1360 W
|
750
|
590
|
590
|
550
|
470-460
|
84 kg
|
276 kg
|
|
TEO
|
EI 500/500/175
|
80 kVA
|
98 %
|
520 W
|
1622 W
|
750
|
580
|
590
|
550
|
470-460
|
110 kg
|
320 kg
|
|
TEO
|
EI 500/500/200
|
100 kVA
|
98 %
|
600 W
|
1700 W
|
750
|
580
|
590
|
550
|
470-460
|
145 kg
|
375 kg
|
|
TEO
|
EI 600/600/150
|
125 kVA
|
98 %
|
670 W
|
1900 W
|
840
|
490
|
800
|
460
|
512-448
|
214 kg
|
450 kg
|
|
TEO
|
EI 600/600/200
|
160 kVA
|
98 %
|
850 W
|
1900 W
|
840
|
490
|
800
|
460
|
512-448
|
217 kg
|
590 kg
|
|
TEO
|
EI 700/700/200
|
225 kVA
|
98 %
|
900 W
|
2700 W
|
1090
|
800
|
1000
|
560
|
632-568
|
340 kg
|
775 kg
|
|
TEO
|
EI 800/800/200
|
300 kVA
|
98 %
|
1200 W
|
3600 W
|
1290
|
790
|
1100
|
-
|
-
|
535 kg
|
1050 kg
|
|
TEO
|
EI 800/800/250
|
400 kVA
|
99 %
|
1550 W
|
2360 W
|
1290
|
850
|
1100
|
-
|
-
|
655 kg
|
1450 kg
|
|
TEO
|
EI 800/800/400
|
500 kVA
|
99 %
|
2000 W
|
2590 W
|
1290
|
850
|
1100
|
-
|
-
|
621 kg
|
2100 kg
|
|
Technical changes and optimisation reserved. All details are guide values, variations are possible.
|
03/2014
|
|
|
|
|
Alternative table: Energy-efficient transformers
|
|
|
Type
|
Type size
|
Sec
power
|
Efficiency
|
Iron
losses
|
Copper
losses
|
Dimensions in mm
|
Copper
weight
|
Total
weight
|
|
L
|
B
|
H
|
U1
|
U2
|
|
TEO
|
S3U 500/500/150
|
63 kVA
|
98,1 %
|
34 W
|
1165 W
|
750
|
590
|
590
|
550
|
470-460
|
119 kg
|
348 kg
|
|
TEO
|
S3U 500/500/175
|
80 kVA
|
98,5 %
|
41 W
|
1200 W
|
750
|
580
|
590
|
550
|
470-460
|
140 kg
|
405 kg
|
|
TEO
|
S3U 500/500/200
|
95 kVA
|
98,6 %
|
45 W
|
1260 W
|
750
|
580
|
590
|
550
|
470-460
|
197 kg
|
500 kg
|
|
TEO
|
S3U 600/600/150
|
125 kVA
|
98,6 %
|
49 W
|
1820 W
|
840
|
490
|
800
|
460
|
512-448
|
257 kg
|
607 kg
|
|
TEO
|
S3U 600/600/200
|
160 kVA
|
98,6 %
|
65 W
|
2250 W
|
840
|
490
|
800
|
460
|
512-448
|
302 kg
|
732 kg
|
|
TEO
|
S3U 700/700/200
|
200 kVA
|
98,6 %
|
89 W
|
2650 W
|
1090
|
800
|
1000
|
560
|
632-568
|
333 kg
|
908 kg
|
|
TEO
|
S3U 800/800/200
|
300 kVA
|
98,6 %
|
115 W
|
4013 W
|
1290
|
790
|
1100
|
-
|
-
|
550 kg
|
1350 kg
|
|
Technical changes and optimisation reserved. All details are guide values, variations are possible.
|
09/2012
|
|
|
|
|
Reduction of idle power due to usage of energy-efficient transformers
|
|
|
|
Transformer size
|
Power [kVA]
|
Idle power [Var]
|
Default/Amorphous
|
|
Amorphous core
|
S3U 500/500/150
|
63
|
1405
|
2,6
|
|
Default core
|
EI 500/500/150
|
63
|
3690
|
|
|
|
|
|
|
|
Amorphous core
|
S3U 500/500/175
|
80
|
2890
|
2,2
|
|
Default core
|
EI 500/500/175
|
80
|
6226
|
|
|
|
|
|
|
|
Amorphous core
|
S3U 500/500/200
|
95
|
3950
|
2,4
|
|
Default core
|
EI 500/500/200
|
100
|
7025
|
|
|
|
|
|
|
|
Amorphous core
|
S3U 600/600/150
|
125
|
2450
|
3,0
|
|
Default core
|
EI 600/600/150
|
125
|
7379
|
|
|
|
|
|
|
|
Amorphous core
|
S3U 600/600/200
|
160
|
3420
|
2,9
|
|
Default core
|
EI 600/600/200
|
160
|
9891
|
|
|
|
|
|
|
|
Amorphous core
|
S3U 700/700/200
|
200
|
3404
|
2,5
|
|
Default core
|
EI 700/700/200
|
200
|
8510
|
|
|
|
|
|
|
|
Amorphous core
|
S3U 800/800/160
|
300
|
3540
|
2,2
|
|
Default core
|
EI 800/720/160
|
300
|
7870
|
|
|
|
|
