Energy efficient power transformers 100 kVA-1 MVA


Datasheet as PDF
Three-phase transformers optimised for part load,
three-phase power-dry-transformers,
three-phase-isolation-transformers

ceclass_H60076energy


Energy efficient power transformers

BV 1965006


Fields of application


Isolating transformer conform to VDE0532 part 726 for general purpose, e.g. for safe isolation for devices conform to VDE0700/EN60335, or as a distribution transformer to build up TN-netsystems. Useable for potential free net, for test systems or as power-ratio transformers..


Description


Three-phse transformers, built as an isolation transformer conform to DIN VDE0532 part 726, prepared for safety class I. It is possible to build each transformer in this family in each vector group. If no vector group is mentioned, we use group Dyn5 (star point can have full load from outside conductor). Please have a look at the difference between outside conductor voltage (voltage phase to phase) and voltage phase to star point at the different vector groups. The mounting must be done in a way that allows a convection through the cooling channels. For safe transportation the transformers have crane hooks at the upper side. With our impregnation under vacuum the transformers have a very low hum-noise.


Advantages


  • Best environmental point balance: energy consumption for construction and for operation are minimal
  • part load optimised
  • low stand-by losses
  • quick “return of investment”
  • no current inrush (as an option)
  • fusing with rated current is possible (as an option)
  • optimised core and winding geometry
  • full load and overload secure due to temperature monitoring
  • small and light weight due to optimal magnetic flux
  • weight and volume reduction due to optimal deheating
  • environmental friendly due to avoiding unnecessary material
  • environmental friendly due to reduction of permanent losses


Technical data


3AC-isolating transformer conform to DIN VDE0532 part 726
upper voltage up to 30 kV
undervoltage 110 V up to 1000 V
terminals on upper side and opposing
vector group Dy5n
frequency 50 - 60 Hz
short circuit votlage 4% - 6%
flat terminals for bolts
temperature class F
max. ambient temperature 40°C
prepared for mounting upright on mounting angles
core grain orientated, low-loss metal sheets
fire class UL94V0
quality management certificate ISO9001 and GOST


Alternative table: energy-efficient transformers


Type size

Sec
power

Efficiency

Iron
losses

Copper
losses

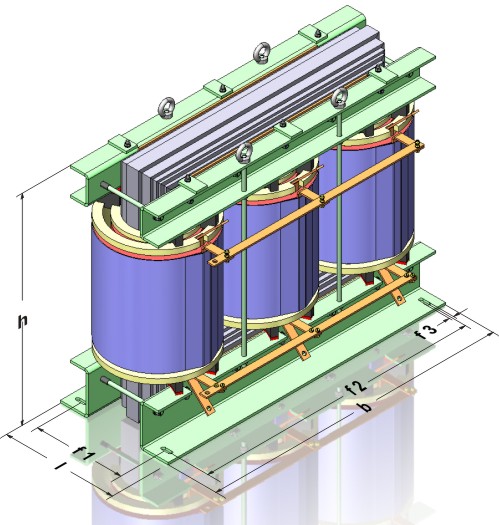

Dimensions in mm

Copper
weight

Total
weight

b

l

l1

h

h1

f1

610/600/120/6

100 kVA

97 %

180 W

3400 W

720

240

600

-

-

-

100 kg

280 kg

770/560/160/7

250 kVA

98 %

315 W

4500 W

886

281

720

-

-

-

230 kg

580 kg

850/680/170/8

400 kVA

98 %

460 W

6500 W

990

320

800

-

-

-

320 kg

830 kg

1110/810/200/7

500 kVA

98 %

650 W

7300 W

1164

370

810

-

-

-

420 kg

1200 kg

930/710/190/8

630 kVA

99 %

650 W

8600 W

1100

350

900

-

-

-

530 kg

1300 kg

960/700/200/5

850 kVA

99 %

730 W

10400 W

1200

390

900

-

-

-

780 kg

1650 kg

1090/750/230/8

1000 kVA

99 %

1065 W

11000 W

1300

400

1000

-

-

-

860 kg

2000 kg

Technical changes and optimisation reserved. All details are guide values, variations are possible.
