Three-phase current inrush avoider


Datasheet as PDF
150 A, 100 kVA tri-phase

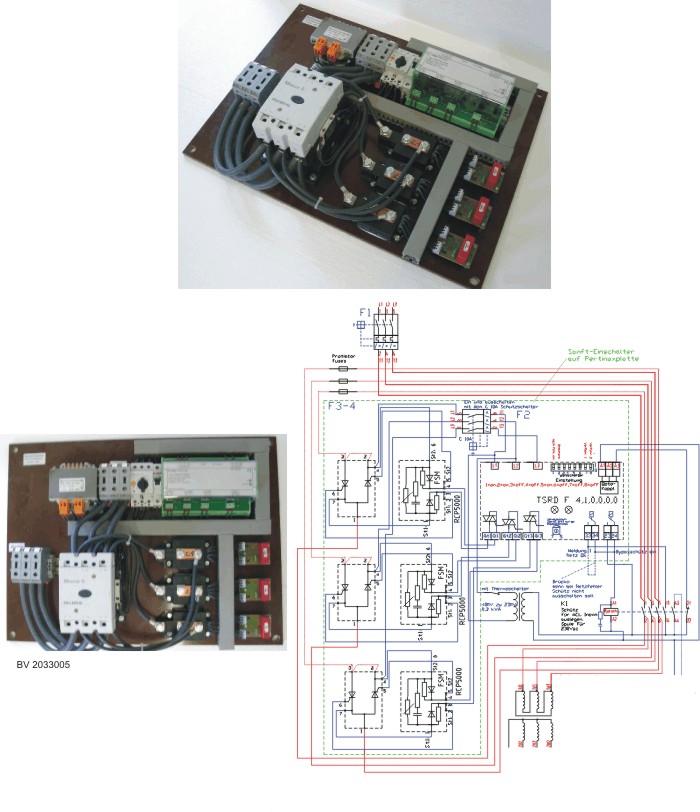

Tri-phase current inrush avoider


Possible application


The current inrush avoider serves as start-up help for a 100 kVA three-phase transformer.


Technical data


Type size: TSRDF 410 000
Voltage primary: 3 x 400 V
Current: 150 A
Rated power: 100 kVA
Frequency: 50 Hz
Construction: open
Mounting: on a top-hat rails TS 35
Safeguarding with the rated current of the transformer is possible
