Test transformer for test equipment 25 kVA


Datasheet as PDF
Three-phase transformer
3 x 400 V
27 x 115 V
25 kVA

ceclass_Hsymb_spar


Test equipment
Test equipment

BV 28093001


Fields of application


Test transformer for test equipment, research, development, laboratory, ...


Technical data


3AC-transformer

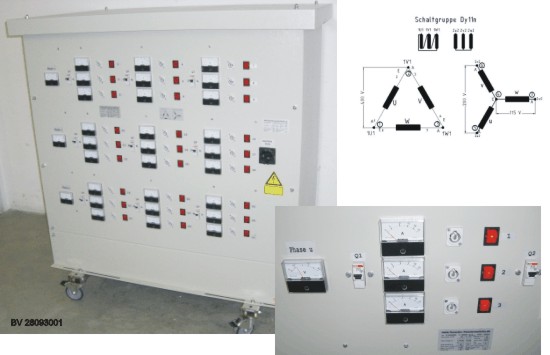

Vector group: Dy11n
Voltage primary: 400 V
Voltage secondary: 27 x 115 V
Rated power: up to 25 kVA
Frequency: 50 Hz
Construction: open, built in a housing IP 23 with rolls RAL 7032
Terminals: pri: Power supply line via CEEE-plug 36 A and a power switch on the front side of the housing

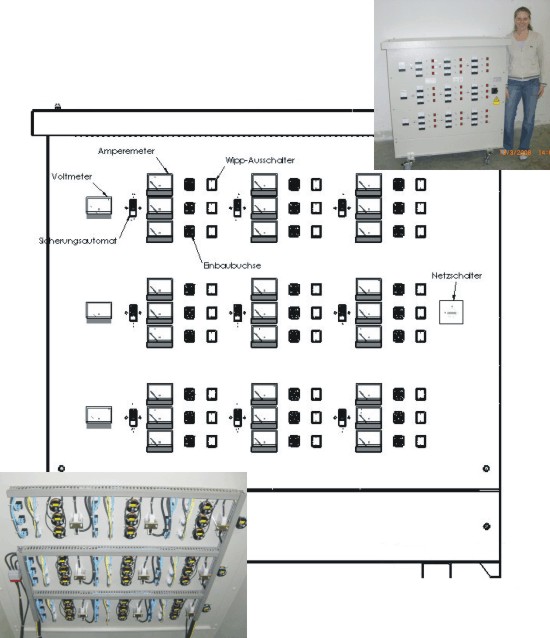

                    sec: 27 sockets, 20 A fused by cutouts, 20 A ammeter for each socket, every socket has an illuminated switch
Test voltage: 5000 V pri-sec
