Test equipment 10 000 VA


Datasheet as PDF
Three-phase transformer
3 x 400 V
3 x 200 V
10 kVA

ceclass_Hsymb_spar


Test equipmentTest equipment

10 000 VA

BV 3024010


Fields of application


Test transformer for test equipment, research, development, laboratory, ...


Technical data


3AC-transformer

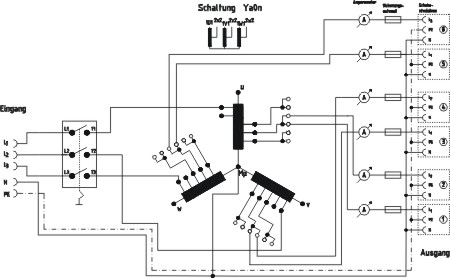

Vector group: Ya0n
Voltage primary: 400 V
Voltage secondary: 200 V
Rated power: up to 10 kVA
Frequency: 50 Hz
Construction: open, built in a housing IP 23
