Deflection coilDeflection coil

BV 3278003


Application


Adjustment of an electron beam in an UV source


Customer’s demand


We have to precisely justify an electron beam in our UV-source.


Solution

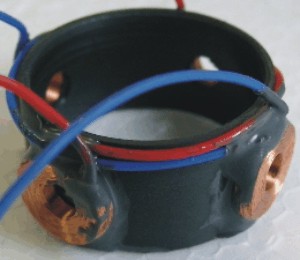

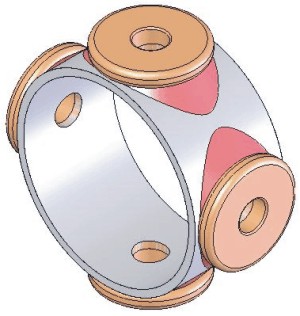

Four air inductors affixed on a ring allow a justification for x/y directions. The dimensions are customised depending on the tight geometry. Further inductors can be found at page D29.
