Linear stators 100 kW


Datasheet as PDF


We produce linear stators for InTraSys GmbH in Munich for 16 years


The most famous projects are:
1995:               Superman, California
1996:               Tower of Terror, Australia
1998:               Disney’s Californian Adventure
1999:               Six Flag Magic Mountain
2000:               U Shape, Rock’n Roller, Disneyland USA
2002:               Rail Cab, Neue Bahntechnik Paderborn
2008:               Blue Fire Mega Coaster, Europapark Rust
2009:               Battlestar Galactica, Universal Studios Singapur
2010:               Ferrari Duelling Coaster, Abu Dhabi


Features of LSM propulsion

Features of SLIM propulsion


  • wear free, 10 million stress runs
  • compact construction of the stator, because of a special core structure, very high notch filling up to 60%
  • magnetic impact over the whole constructional width
  • completely capsuled (IP 68)
  • solid mechanical conduct necessary
  • secondary parts are used passively as permanent magnet without any electrical input
  • forces up to 200 kN at 3000 A
  • speed up to 50 m/s (180 km/h)
  • no transverse forces
  • weight 27 kg without cable
  • Length 1500 mm
  • Thickness 20 mm
  • Thrust 8 kN/m
  • Brake force 14,7 kN/m


Roller Coaster California

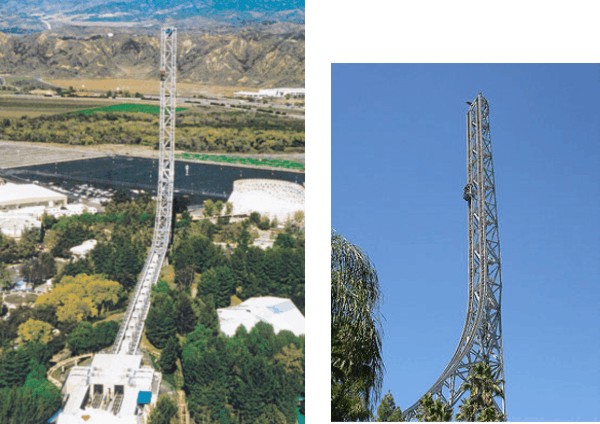

1995: Tauscher stators for Superman Reverse Free Fall

  • moved weights: 7000 kg
  • maximal speed: 45 m/s (160 km/h)
  • maximal acceleration: 2g
  • mechanic drive input: 1,5 MW
  • Power of the frequency inverter: 2500 kVA
  • Quote of permitted false starts: 10 ppm
  • Six Flags Magic Mountain Park

Within seven seconds the 7t heavy vehicle is accelerated up to 160 km/h and shoots vertically up in the air. During the following free fall, the passengers are weightless for approximately six seconds.

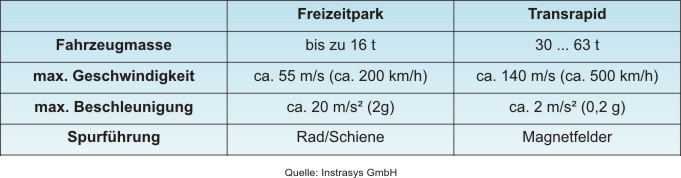

Comparison: Amusement park vs transrapid

InTraSys
Superman Reverse Free Fall


Hybrid propulsions “Neue Bahntechnik” Paderborn


2002: Tauscher stators for rail cab

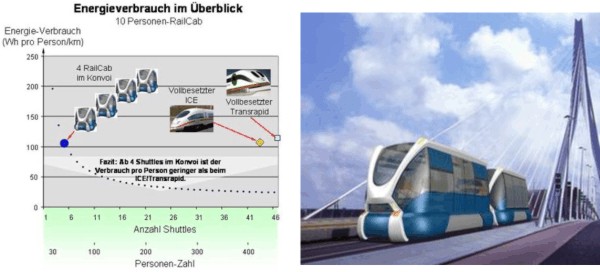

The propulsion module of the rail cab is composed of a double fed long stator linear motor. The basic propulsion is not included in the vehicle anymore at this concept. The three-phase windings, lying in the stator, build up a magnetic field which moves forwards along the rails and thus transports the vehicle. The magnetic force action between the magnetic field of the stator and the field of the armature accelerate and slow down the vehicle without using the tire/rail-contacts. The double fed allows any alignment of the magnetic field at the vehicle. Because of this it is possible to run several rail cabs on the same stator segment. The tires of the vehicle are just used for leading and steering, which also decreases their wear. The secondary part of the engine (armature) is on the vehicle. By this the unsprung weights of the cab are decreased, a gearbox is abandoned completely. Furthermore the engine can be adjusted to the landscape, e.g. at risings the dimensions are increased.

Neue Bahntechnik Paderborn - Railcab

Source: http://www-nbp.uni-paderborn.de/


More information about linear propulsion technology


intrasyscoastersandmore

www.instrasys-gmbh.com
one the page “Lineare Antriebstechnik für hohe Geschwindigkeiten und präzise Positionierung”

www.coastersandmore.de/rides/lim/lim_lsm.shtml
“Lineare Induktions Motoren - Mit Volldampf auf der Magnetwelle für Achterbahnen”


Europapark Rust


From 0 to 100 km/h within 2,5 seconds. Into the roller coaster fun!.

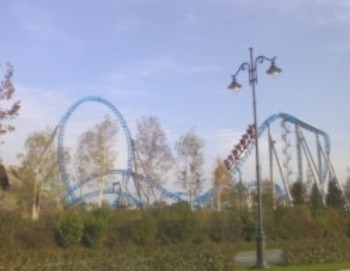

Currently the Europapark offers nine different roller coasters for coaster fans, whereas the Hyper Coaster Silver Star with a height of 73 meters is the highest roller coaster of Europe at the moment. Since 2099 the Blue Fire Megacoaster, a catapult coaster, which accelerates from 0 to 100 km/h within 2,5 seconds, provides a thrill for every fanh of adrenaline.
More about it can be read here
Thrill during the ride: Elektrische Antriebstechnik 03/2010

The SLIM stators for the propulsion, which we delivered 2008 and 2009.

Blue Fire Mega Coaster stators
Blue Fire Megacoaster


Speed frenzy


Millions of people daily enjoy multiple loopings and falls at a high speed when riding the roller coasters all around the world. Despite the high speed, passengers can feel safe due to the fact that the required knowledge for the systems comes from experienced German companies. Tauscher linear stators are used in many roller coasters world wide already. More


Sentosa - Battlestar Galactica

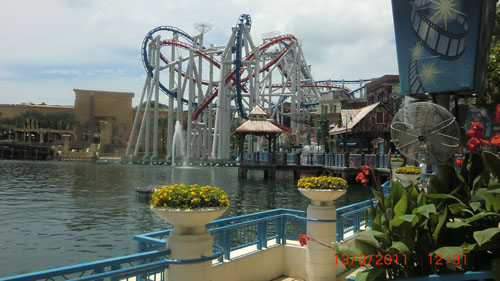

One half of the coaster resembles an inverted roller coaster track in blue. The second half is a coaster with traditional seats on a red track. Battlestar Galactica is currently the tallest duelling coaster in the world, reaching 42,5 m. The trains are launched from their stations at high speed instead of the traditional chain lift. This is only possible due to the new technology of Linear Synchronous Motors.
LSM are used for high acceleration speed during launch. 192 of those LSM were produced and delivered at the beginning of 2009 by Tauscher Transformatorenfabrik GmbH in cooperation with InTraSys GmbH in Munich.

The roller coaster is divided into two separate coasters:
Cylon:
This is a suspended coster that travels on an inverted blue track. It performs intense maneuvers and races into a 5 meter deep pit which is filled with artificial fog
Human:
This coaster is a seated roller coaster and travels on the red track. It reaches a speed of 90 km/h at one point of the track.

The coasters feature several near collisions mere inches apart, which gives the passengers extra thrill.

Link to our poster

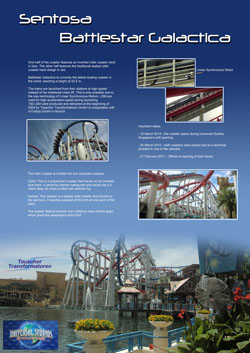

Battlestar Galactica - poster
Battlestar Galactica - Stators for InTraSys
