High-current transformer one-phase
without unbalanced load

3kVA transformer with safety low voltage conform to EN 61555-2-6 for resistive heating at rotary current nets.
Datasheet as PDF

BV 1606001

Customer’s demand

We are in need of a single-phase high-current transformer, which can be three-phase connected without any unbalanced load. The current should be at 500 A and has to serve as resistive heating. Temporary overload should be possible. Secondary-sided current and voltage should be displayed.

Solution

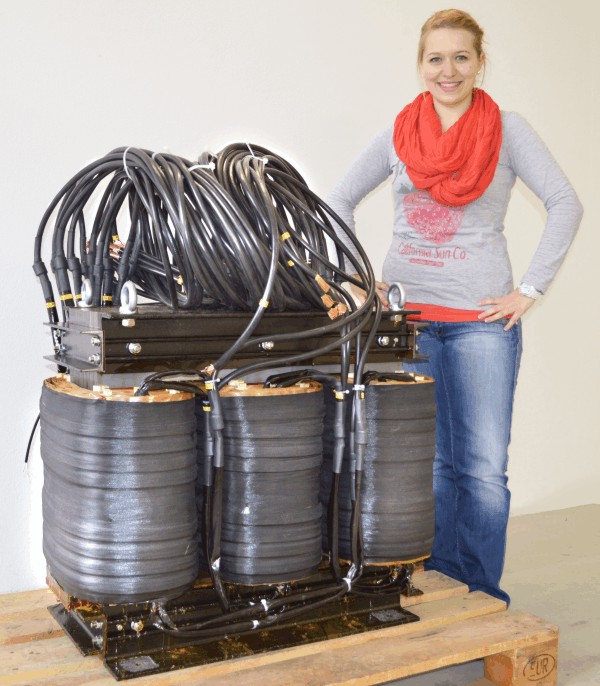

A high-power transformer, which is able to distribute the load three-phase to single-phase on the three primary coils even by using a special vector group. To cope with overload, thermal-driven fans are mounted. To customer’s demand, the connections are made as high-current cables.

Technical data

Frequency range: 50 Hz bis 60 Hz
Primary: 3 x 400 V
Secondary: 1 x 6 V 500 A
max. ambient temperature: 40°C
Display instruments: for current voltage
Housing: IP 23
Connection cables: each 2 x 95 qmm
Overload possible by temperature protection fans
