Three-phase isolating transformer 120 kVA


Datasheet as PDF


Three-phase isolating transformer 120 kVA
Three-phase isolating transformer 120 kVA


Technical data


3AC- isolating transformer
Frequency: 50 Hz - 60 Hz

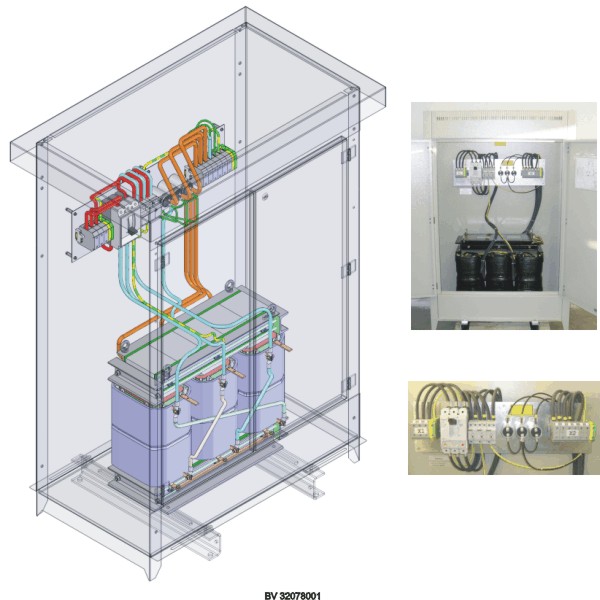

Construction: open, vacuum varnished, built in a cabinet housing IP 23 RAL7032
Weight: 570 kg
Copper weight: 220 kg
3-phase lightning-/overvoltage protection for TC-C net
3-phase motor protection circuit breaker
Neutral grounding

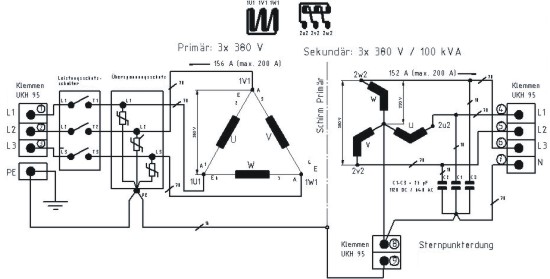

Vector group: Zig-zag Dz0n
