Three-phase transforemr with pins for PCB, potted
|
|
|
|
Datasheet as PDF
|
|
|
|
Table
|
|
Type
|
Type size
|
Sec.-
power
|
Efficiency
|

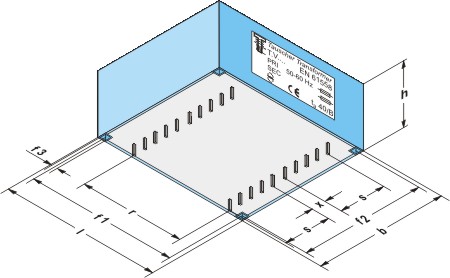

Dimensions in mm
|
Grid
|
Number
of pins
|
Mounting holes
|
Copper-
weight
|
Total
weight
|
|
l
|
b
|
h
|
r
|
s
|
x
|
f1
|
f2
|
f3
|
|
TEV
|
EI 50/50/7,5
|
4,5 VA
|
63 %
|
53
|
64
|
19,5
|
35
|
3 x (3 x 5)
|
5
|
24
|
47,5
|
57,5
|
Ø 2,5
|
70 g
|
210 g
|
|
TEV
|
EI 50/50/10,5
|
8 VA
|
64 %
|
53
|
64
|
23,0
|
35
|
3 x (3 x 5)
|
5
|
34
|
47,5
|
57,5
|
Ø 2,5
|
80 g
|
270 g
|
|
TEV
|
EI 50/50/16,5
|
14 VA
|
70 %
|
53
|
64
|
29,0
|
35
|
3 x (3 x 5)
|
5
|
24
|
47,5
|
57,7
|
Ø 2,5
|
90 g
|
380 g
|
|
TEV
|
EI 65/65/8
|
13 VA
|
63 %
|
68
|
83
|
23,0
|
45
|
3 x (4 x 5)
|
6
|
30
|
62,6
|
75
|
Ø 2,5
|
130 g
|
380 g
|
|
TEV
|
EI 65/65/10,2
|
18 VA
|
70 %
|
68
|
83
|
24,5
|
45
|
3 x (4 x 5)
|
6
|
30
|
62,6
|
75
|
Ø 2,5
|
155 g
|
470 g
|
|
TEV
|
EI 65/65/13,5
|
23 VA
|
76 %
|
68
|
83
|
28,0
|
45
|
3 x (4 x 5)
|
6
|
30
|
62,6
|
75
|
Ø 2,5
|
170 g
|
580 g
|
|
TEV
|
EI 65/65/17
|
28 VA
|
78 %
|
68
|
83
|
32,0
|
45
|
3 x (4 x 5)
|
6
|
30
|
62,6
|
75
|
Ø 2,5
|
180 g
|
680 g
|
|
TEV
|
EI 65/65/21
|
36 VA
|
81 %
|
68
|
83
|
36,0
|
45
|
3 x (4 x 5)
|
6
|
30
|
62,6
|
75
|
Ø 2,5
|
200 g
|
830 g
|
|
Technical changes and optimization reserved
|
01/2010
|
|
|
|
|
|
