Potted three-phase transformer with pins


Datasheet as PDF

cesymb-EN-61558symb-EN-61558-okf61558_vnkf61558_kfclass_Hsymb-schutzisoliert


Potted three-phase transformer with pins


Table


Type

Type size

Sec
power

Efficiency

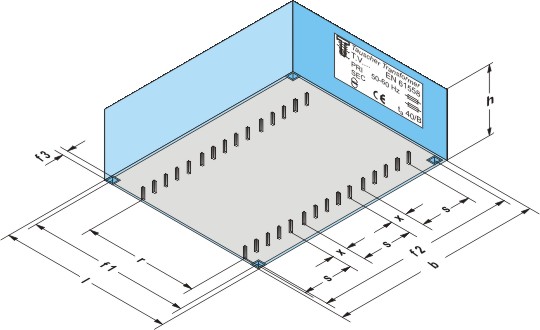

Dimensions in mm

Pin grid

Number
of pins

Mounting holes

Copper
weight

Total
weight

l

b

h

r

x

s

f1

f2

f3

TEV

EI 50/50/7,5

4,5 VA

63 %

53

64

19,5

35

5

3 x (3 x 5)

24

47,5

57,5

Ø2,5

70 g

210 g

TEV

EI 50/50/10,5

8 VA

64 %

53

64

23,0

35

5

3 x (3 x 5)

24

47,5

57,5

Ø2,5

80 g

270 g

TEV

EI 50/50/16,5

14 VA

70 %

53

64

29,0

35

5

3 x (3 x 5)

24

47,5

57,7

Ø2,5

90 g

380 g

TEV

EI 65/65/8

13 VA

63 %

68

83

23,0

45

6

3 x (4 x 5)

30

62,6

75

Ø2,5

130 g

380 g

TEV

EI 65/65/10,2

18 VA

70 %

68

83

24,5

45

6

3 x (4 x 5)

30

62,6

75

Ø2,5

155 g

470 g

TEV

EI 65/65/13,5

23 VA

76 %

68

83

28,0

45

6

3 x (4 x 5)

30

62,6

75

Ø2,5

170 g

580 g

TEV

EI 65/65/17

28 VA

78 %

68

83

32,0

45

6

3 x (4 x 5)

30

62,6

75

Ø2,5

180 g

680 g

TEV

EI 65/65/21

36 VA

81 %

68

83

36,0

45

6

3 x (4 x 5)

30

62,6

75

Ø2,5

200 g

830 g

Technical changes and optimisation reserved. All details are guide values, variations are possible.

03/2012
