Open three-phase transformer with pins


Datasheet as PDF

cesymb-EN-61558symb-EN-61558-okf61558_vnkf61558_kfclass_H

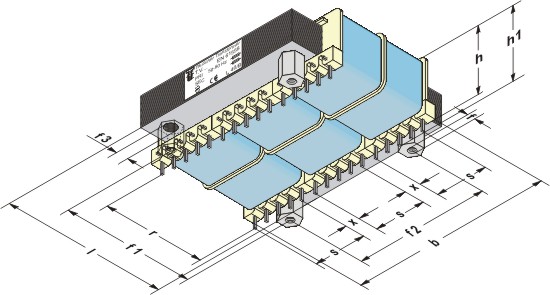

Open three-phase transformer with pins


Table


Type

Type size

Sec
power

Efficiency

Dimensions in mm

Pin grid

Number
of pins

Mounting holes

Copper
weight

Total
weight

b

l

h

h1

r

x

s

f1

f2

f3

f

TEO

EI 50/50/7,5

4,0 VA

69 %

59

50

18,0

-

35

5

3 x (3 x 5)

24

-

-

-

-

70 g

190 g

TEO

EI 50/50/10,5

7,5 VA

64 %

59

50

21,0

-

35

5

3 x (3 x 5)

24

-

-

-

-

80 g

240 g

TEO

EI 50/50/16,5

12,5 VA

70 %

59

50

27,0

-

35

5

3 x (3 x 5)

24

-

-

-

-

90 g

340 g

TEO

EI 65/65/8

11,5 VA

63 %

76

65

20,5

-

45

6

3 x (4 x 5)

30

-

-

-

-

130 g

340 g

TEO

EI 65/65/10,2

16,5 VA

70 %

76

65

23,0

-

45

6

3 x (4 x 5)

30

-

-

-

-

155 g

430 g

TEO

EI 65/65/13,5

21 VA

76 %

76

65

26,5

-

45

6

3 x (4 x 5)

30

-

-

-

-

170 g

540 g

TEO

EI 65/65/17

25 VA

78 %

76

65

30,0

-

45

6

3 x (4 x 5)

30

-

-

-

-

180 g

620 g

TEO

EI 65/65/21

33 VA

81 %

76

65

34,0

-

45

6

3 x (4 x 5)

30

-

-

-

-

200 g

750 g

TEO

EI 80/80/17

42 VA

80 %

93

80

37,0

38

52,5

7

3 x (5 x 5)

36

64

64

4,5

M4

290 g

950 g

TEO

EI 80/80/17 S

48 VA

81 %

93

80

37,0

38

52,5

7

3 x (5 x 5)

36

64

64

4,5

M4

290 g

950 g

TEO

EI 80/80/26

63 VA

82 %

93

80

46,0

47

52,5

7

3 x (5 x 5)

36

64

64

4,5

M4

330 g

1320 g

TEO

EI 80/80/26 S

72 VA

84 %

93

80

46,0

47

52,5

7

3 x (5 x 5)

36

64

64

4,5

M4

330 g

1320 g

TEO

EI 100/100/21

105 VA

84 %

117

100

44,0

45

65

10

3 x (6 x 5)

42

80

80

4,5

M4

720 g

2000 g

TEO

EI 100/100/21 S

125 VA

87 %

117

100

44,0

45

65

10

3 x (6 x 5)

42

80

80

4,5

M4

720 g

2000 g

TEO

EI 100/100/31

150 VA

88 %

117

100

54,0

55

65

10

3 x (6 x 5)

42

80

80

4,5

M4

760 g

2700 g

TEO

EI 100/100/31 S

175 VA

89 %

117

100

54,0

55

65

10

3 x (6 x 5)

42

80

80

4,5

M4

760 g

2700 g

Technical changes and optimisation reserved. All details are guide values, variations are possible.
