Toroidal transformer water- and dirt resistant
in a housing IP 65
|
|
Safety and isolating transformer conform to DIN EN 61558-2-4 with 5000V / 50Hz test voltage pri-sec and a power of 200VA up to 6800VA
IP 65 conform to DIN 60529, IEC 529, VDE 0470 - higher dirt classes conform to IEC 60947
Datasheet as PDF
|
|
|
|
Field of application
|
|
Outdoor installation, industry environment, automotive environment, environment with marked contamination layers, tropical area, swimming- and sanitary technology
|
|
|
|
Description
|
|
The transformer is built in a housing IP 65. The abbreviation IP means, conform to DIN “International Protection” but is used as “Ingress Protection” in the english-speaking area.
“6” means: Dust infiltering will not be able (dust proof). Furthermore it is not possible to get ingress to dangerous parts with a wire.
“5” means: Hose water-proof, jet of water from every direction towards the housing may not have any harmful effects.
|
|
|
|

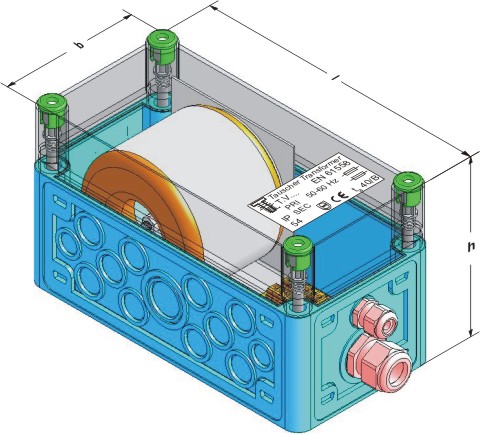

Drawing and table
|
|
|
|
Type
|
Sec
|
Efficiency
|
No-load
|
Voltage
|
Dimensions
|
Copper
|
Total
|
|
|
power
|
η
|
current
|
factor
|
in [ mm ]
|
weight
|
weight
|
|
|
|
|
|
|
l
|
b
|
h
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TRH.E
|
200 VA
|
94 %
|
15 mA
|
1,08
|
300
|
150
|
170
|
0,71 kg
|
4,0 kg
|
|
TRH.E
|
225 VA
|
94 %
|
16 mA
|
1,07
|
300
|
150
|
170
|
0,86 kg
|
4,3 kg
|
|
TRH.E
|
250 VA
|
94 %
|
17 mA
|
1,07
|
300
|
150
|
170
|
0,92 kg
|
4,2 kg
|
|
TRH.E
|
300 VA
|
94 %
|
18 mA
|
1,06
|
300
|
150
|
170
|
1,24 kg
|
4,6 kg
|
|
TRH.E
|
400 VA
|
95 %
|
20 mA
|
1,06
|
300
|
150
|
170
|
1,66 kg
|
5,4 kg
|
|
TRH.E
|
500 VA
|
96 %
|
25 mA
|
1,05
|
300
|
150
|
170
|
1,90 kg
|
5,9 kg
|
|
TRH.E
|
600 VA
|
96 %
|
28 mA
|
1,05
|
300
|
150
|
170
|
1,95 kg
|
6,5 kg
|
|
TRH.E
|
700 VA
|
96 %
|
30 mA
|
1,05
|
300
|
300
|
170
|
2,24 kg
|
6,6 kg
|
|
TRH.E
|
800 VA
|
97 %
|
32 mA
|
1,04
|
300
|
300
|
170
|
2,50 kg
|
7,9 kg
|
|
TRH.E
|
900 VA
|
97 %
|
40 mA
|
1,04
|
300
|
300
|
170
|
3,00 kg
|
8,7 kg
|
|
TRH.E
|
1000 VA
|
97 %
|
50 mA
|
1,04
|
300
|
300
|
170
|
3,50 kg
|
9,1 kg
|
|
TRH.E
|
1000 VA
|
97 %
|
50 mA
|
1,04
|
300
|
300
|
170
|
3,50 kg
|
11,2 kg
|
|
TRH.E
|
1200 VA
|
97 %
|
60 mA
|
1,03
|
300
|
300
|
170
|
4,40 kg
|
11,3 kg
|
|
TRH.E
|
1500 VA
|
97 %
|
70 mA
|
1,03
|
300
|
300
|
170
|
4,60 kg
|
12,2 kg
|
|
TRH.E
|
2000 VA
|
97 %
|
80 mA
|
1,03
|
300
|
300
|
170
|
7,50 kg
|
17,2 kg
|
|
TRH.E
|
2000 VA
|
97 %
|
80 mA
|
1,03
|
300
|
300
|
170
|
7,50 kg
|
18,6 kg
|
|
TRH.E
|
3000 VA
|
97 %
|
100 mA
|
1,03
|
300
|
300
|
170
|
10,0 kg
|
22,0 kg
|
|
TRH.E
|
4700 VA
|
97 %
|
300 mA
|
1,03
|
300
|
300
|
170
|
14,0 kg
|
29,7 kg
|
|
TRH.E
|
6800 VA
|
97 %
|
400 mA
|
1,03
|
600
|
600
|
170
|
20,0 kg
|
42,2 kg
|
|
technical changes and optimization reserved
|
02/2010
|
|
|
|
|
|
