High voltage transformer up to 20 kV AC

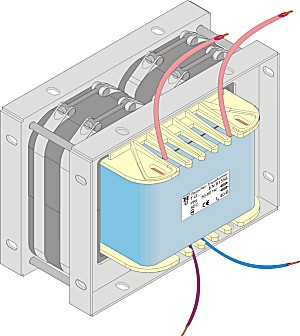

potted version
|
|

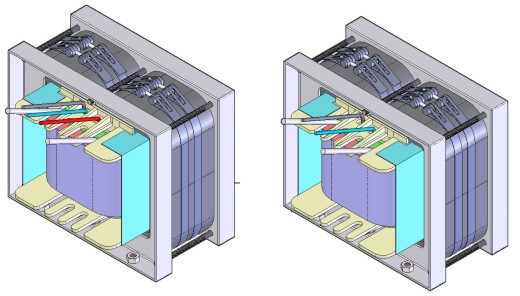

High voltage transformer 10 VA ... 2000 VA up to 20 kV secondary rated voltage, vacuum potted with cast resin
Datasheet as PDF
|
|
|
|
Field of application
|
|
Usable for X-ray units, lasers, heavy duty light sources, copy machines, telecommunication engineering (transmitting stations with high power, transmitting valves), medical technology (shock waves used to shatter kidney stones), research (driving generators for particle accelerators), manufacturing techniques (varnishing and coating machines as well as high speed forming by shock waves), examination of EMC (electromagnetic compatibility) (by means of high field intensity), lightning protective systems and overvoltage preventers, environmental protection (electrostatic filter), recycling (shock waves used to shatter and separate particles), the manufacturing of components (e.g. capacitors) or papermaking, in television devices and copy machines, and in ignition systems (e.g. automobile electronics).
|
|
|
|
|
|
|
|
|
|
BV 18039001
|
|
|
|
Table
|
|
The table is sorted by secondary voltage
|
|
Type
|
Type size
|
Sec
power
|
Sec
voltage
|
Dimensions in mm
|
Copper
weight
|
Total
weight
|
BV
|
|
b
|
b1
|
l
|
l1
|
h
|
f1
|
f2
|
f3
|
|
TEV..H
|
EI 54/18,8
|
10 VA
|
1 kV
|
43
|
34
|
82,5
|
57,5
|
49
|
68
|
11
|
3,5
|
70 g
|
400 g
|
|
|
TMVLCH
|
SM 55/21,7
|
15 VA
|
12 kV -1kHz
|
47
|
38
|
57,3
|
57,3
|
57,3
|
-
|
-
|
-
|
130 g
|
600 g
|
2635005
|
|
TEV..H
|
EI 60/30,5
|
20 VA
|
1 kV
|
58
|
48
|
88
|
63,5
|
54
|
75
|
24,5
|
5,2
|
130 g
|
760 g
|
|
|
TEV..H
|
EI 66/34,5
|
10 VA
|
2 kV
|
61
|
52
|
94
|
69,5
|
59
|
82
|
37,5
|
4,8
|
190 g
|
1,05 kg
|
3090001
|
|
TEV..H
|
EI 84/29,5
|
31 VA
|
4 kV
|
64
|
53
|
120
|
93,5
|
75
|
102,5
|
32,5
|
5,5
|
300 g
|
1,5 kg
|
|
|
TEV..H
|
UI 120/50
|
250 VA
|
5 kV
|
186
|
-
|
220
|
-
|
120
|
160
|
80
|
M6
|
1,0 kg
|
4,0 kg
|
15025001
|
|
TEV..H
|
EI 120/73
|
220 VA
|
5,5 kV
|
129
|
110
|
172
|
133,5
|
109
|
150
|
85
|
8,5
|
1,2 kg
|
6,9 kg
|
19005002
|
|
TEV..H
|
EI 84/43,5
|
70 VA
|
7 kV
|
78
|
67
|
120
|
93,5
|
75
|
102,5
|
45
|
5,5
|
325 g
|
2,08 kg
|
|
|
TUV..H
|
UI 75/26,5
|
50 VA
|
7 kV
|
120
|
-
|
150
|
-
|
90
|
100
|
50
|
M6
|
0,9 kg
|
4,0 kg
|
23076002
|
|
TUV..H
|
UI 168/58
|
2000 VA
|
7 kV
|
320
|
-
|
270
|
-
|
150
|
225
|
112
|
-
|
9,5 kg
|
30 kg
|
2553001
|
|
TUVDWH
|
UI 180/78
|
3000 VA
|
7 kV
|
330
|
-
|
270
|
-
|
170
|
240
|
120
|
8,5
|
15 kg
|
43,6 kg
|
3377001
|
|
TUV..H
|
UI 90/31,5
|
300 VA
|
8 kV
|
160
|
-
|
127
|
-
|
78
|
-
|
-
|
-
|
1,2 kg
|
7,0 kg
|
3525043
|
|
TUV..H
|
EI 120/73
|
250 VA
|
8 kV
|
129
|
110
|
172
|
133,5
|
109
|
150
|
85
|
8,5
|
1,2 kg
|
6,9 kg
|
|
|
TEV..H
|
UI 75/26,5
|
40 VA
|
8 kV
|
115
|
-
|
140
|
-
|
55
|
-
|
-
|
-
|
1,5 kg
|
3,3 kg
|
|
|
TEV..H
|
UI 150/52
|
1000 VA
|
10 kV
|
220
|
-
|
270
|
-
|
130
|
200
|
100
|
M8
|
8,0 kg
|
22 kg
|
15031001a
|
|
TEV..H
|
UI 150/52
|
1500 VA
|
15 kV
|
220
|
-
|
270
|
-
|
125
|
-
|
-
|
-
|
8,0 kg
|
22 kg
|
|
|
TUV..H
|
UI 210/73
|
2000 VA
|
15 kV
|
198
|
-
|
280
|
-
|
416
|
138
|
176
|
12
|
23 kg
|
55 kg
|
3004001
|
|
TUV..H
|
SU 90a/31
|
20 VA
|
20 kV
|
90
|
-
|
190
|
-
|
125
|
-
|
-
|
-
|
1,5 kg
|
6,0 kg
|
3382001b
|
|
TEV..H
|
UI 168/58
|
300 VA
|
20 kV
|
280
|
-
|
170
|
-
|
230
|
-
|
-
|
-
|
9,5 kg
|
30 kg
|
2227001
|
|
TEV..H
|
UI 168/58
|
400 VA
|
20 kV
|
320
|
-
|
270
|
-
|
150
|
225
|
112
|
-
|
9,5 kg
|
30 kg
|
1361002
18039001
|
|
