One-phase line reactor with high isolation to earth


Datasheet as PDF
One-phase line reactor with soft magnetic lamination cores for power application conform to VDE 0570 EN61558



cesym-hv2class_Hsymb_harmonics

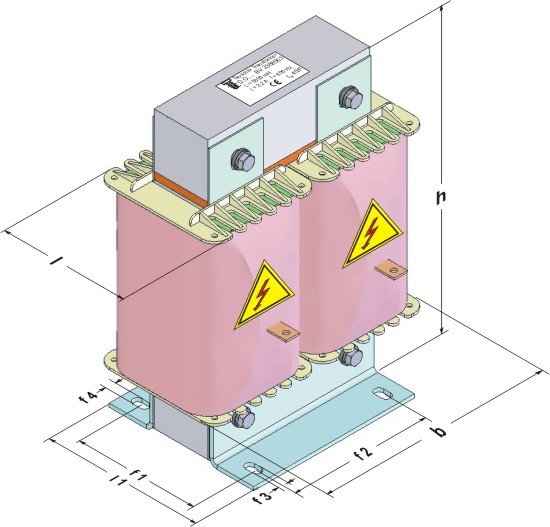

One-phase line reactor with high isolation to earth

BV 2388003


Fields of application


In high voltage DC circuits
Usable as smoothing reactor, commutation reactor in DC circuits:
- low ripple factor
- attenuation of current harmonics
- bridging of line failures
- limitation of current peaks


Technical data


One-phase line reactor conform to EN 61558, EN 50081-1 and -2, EN 50082-1 and -2
Frequency: 50 Hz bis 1 kHz
Test voltage: winding - core up to 50 kV
good EMC ratio
high thermal stability
Temperature class: B or F
max. ambient temperature: 40°C
Fire class: UL94V0
Prepared for protection index I
Protective class: IP00
example:
L = 5000 mH
I = 2,2 A
f = 600 Hz
isolation 15 kV DC
