For our indoor test elements we need a high voltage transformer with 30 kVAC and an additional auxiliary winding for transducers close to ground potential. A small base area would be appreciated and the transformer may not have any oil. The device needs to be able to generate 250 mA constantly at 30 kV.
Solution

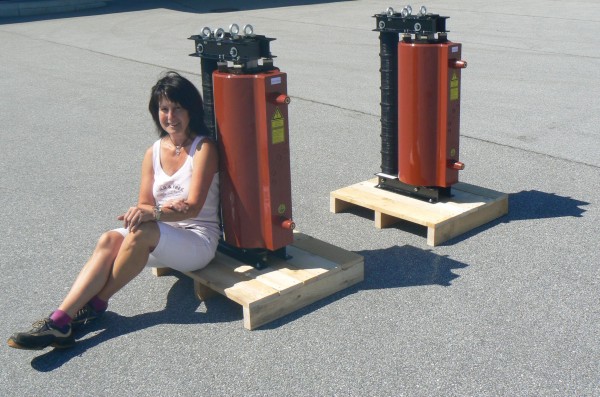

We build a dry cast resin transformer with very low layer voltage and an upright structure. Due to the design height it is easy to maintain all necessary safety distances.
Technical data
Power: 7610 VA Primary: 220 V Secondary 1: 30 kV 0,25 A Secondary 2: 110 V 1,0 A Dimensions: 600 x 230 x 1030 mm Weight: 120kg
