Three-phase high potential isolating transformers


Datasheet as PDF


High potential isolating transformers

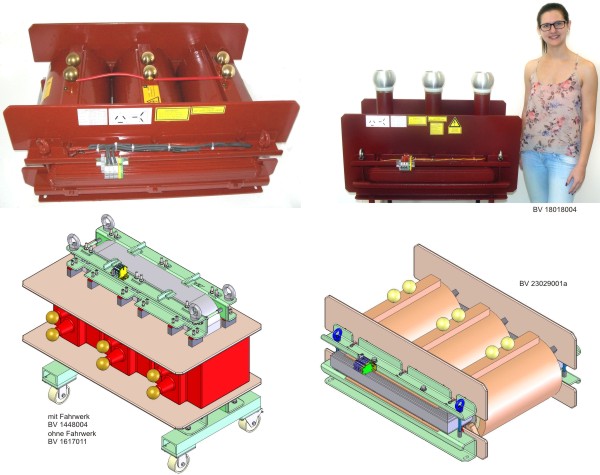

BV 23029001a and BV 1448004 and BV 18018004


Table, sorted by isolating voltage


Type

Sec
power

Isolating
voltage

Dimensions in [mm]

Terminals

Mounting holes

Copper
weight

Total
weight

BV

b

l

h

s

f1

f2

EI 300/300/63

2500 VA

50 kV

-

-

-

Bolts

-

-

12 kg

80 kg

1951002

EI 350/350/88

6000 VA

50 kV

-

-

-

Bolts

-

-

35 kg

117 kg

1621858

S3U 640/500/100

15000 VA

50 kV

-

-

-

Bolts

Crane hooks

40 kg

250 kg

1448004/1617011

EI 400/400/140

15000 VA

60 kV

-

-

-

Bolts

Crane hooks

45 kg

200 kg

1770002

EI 400/400/140

20000 VA

80 kV

-

-

-

Bolts

Crane hooks

45 kg

200 kg

2378001*

EI 600/600/125

50000 VA

80 kV

-

-

-

Bolts

Crane hooks

160 kg

450 kg

23029001a

EI 620/620/80

15000 VA

100 kV

-

-

-

Bolts

Crane hooks

160 kg

450 kg

18018004

EI 500/500/100

20000 VA

150 kV

-

-

-

Bolts

Crane hooks

45 kg

260 kg

32013005

* transformer built in a housing IP23, see drawing HV 8

Technical changes and optimisation reserved. All details are guide values, variations are possible.

07/2016
