Toroidal transformer for low and high voltage supply

BV 1577001b


Customer’s demand


For the power supply of our electronicx we need several voltages. Additionally our electronic microscope needs to be operated with high voltage.


Solution

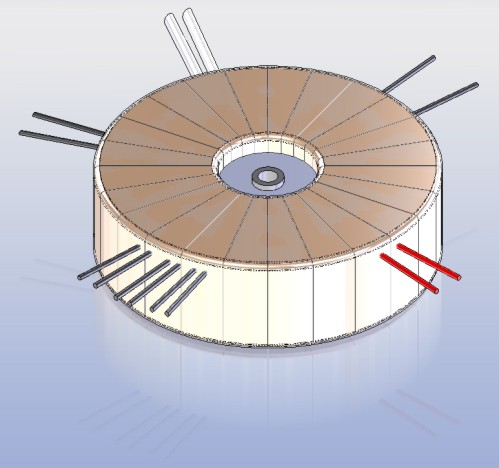

We build a toroidal transformer which can generate low voltage and high voltage simultanously. To redeem the necessary air and creepage distances the connectors are lead with maximum possible distance. A thick isolation between the low and the high voltage makes it possible to manage the needed dielectric strength.


Technical data


Primary: 230 V
Secondary 1: 2 x 19 V 0,25 A
Secondary 2: 9 V 0,25 A
Secondary 3: 30 V 0,02 A
Secondary 4: 1600 V 0,02 A
Secondary 5: 18 V 0,1 A
Power: 46,2 VA
Dimensions: Ø105 mm x 40 mm
Weight: 1 kg
