One-phase high current transformer up to 10 000 A


Datasheet as PDF



ceenergyclass_Hsymb-RoHssymb_Brand


One-phase high current transformers


Field of application


Welding transformers, styrofoam cutter, testing transformers


Technical data


1AC-transformer
Frequency: 50 Hz
Construction: open



Type

Type size

Sec
power

Current

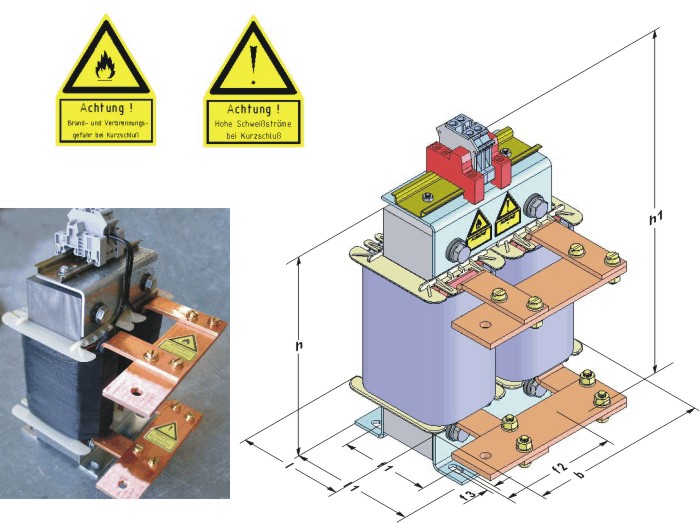

Dimensions in [mm]

Mounting holes

Copper
weight

Total
weight

BV

b

l

l1

h

h1

f1

f2

f3

TEOFAR

84/29,5

160 VA

65 - 80 A

84

70

-

70

-

56

70

4,5

0,31 kg

1,5 kg

3235001

TUO.WR

120/51

1000 VA

800 A

162

97

107

209

260

79

100

7

4,5 kg

12,8 kg

19052001

TUOKWR

120/51

1000 VA

100 A

162

97

107

209

260

79

100

7

4,5 kg

12,8 kg

24043001

TUOKWR

120/51

1000 VA

1000 A

167

97

168

-

298

79

100

7

4,5 kg

12,8 kg

23095001

TUO.WR

120/61

700 VA

1000 A

162

107

117

209

260

89

100

7

4,6 kg

12,9 kg

16028001

TUO.WR

150/77

2500 VA

500 A

202

133

149

261

311

119

124

10

9,1 kg

29 kg

3339003

TUO.WR

150/77

3000 VA

1000 A

202

133

149

261

311

119

124

10

10 kg

30 kg

12029002

TUO.WR

150/77

3000 VA

2500 A

202

133

149

261

311

119

124

10

10 kg

30 kg

3339001

TUOKWR

168/92

5000 VA

2500 A

223

180

-

299

353

144

136

10

15,3 kg

42 kg

11050001

TUO.WR

240/110

10 kVA

1000 A

322

218

225

412

470

184

186

15

30,0 kg

82 kg

1977001

TUOKWR

240/110

10 kVA

1000 A

322

218

228

412

480

184

196

15

32,0 kg

100 kg

3224014

TUODWR

300/150

30 kVA

2000 A

400

220

-

520

-

-

-

-

47,5 kg

180 kg

-

TUODWR

300/150

35 kVA

850 A

400

220

-

520

-

-

-

-

60 kg

140 kg

-

TUOKWR

300/175

40 kVA

5000 A

600

220

-

600

-

-

-

-

77 kg

180 kg

1030169

TUODWR

360/150

42 kVA

850 A

448

320

-

665

-

-

-

-

65 kg

240 kg

-

TUOKWR

480/150

98 kVA

7000 A

600

220

-

665

-

-

-

-

148 kg

310 kg

1033138

Technical changes and optimisation reserved. All details are guide values, variations are possible.

07/2017
