Mid frequency toroidal transformer with water cooling


Datasheet HF-chokes as PDF

3dcadceclass_H61558_onk61558_okf-sm

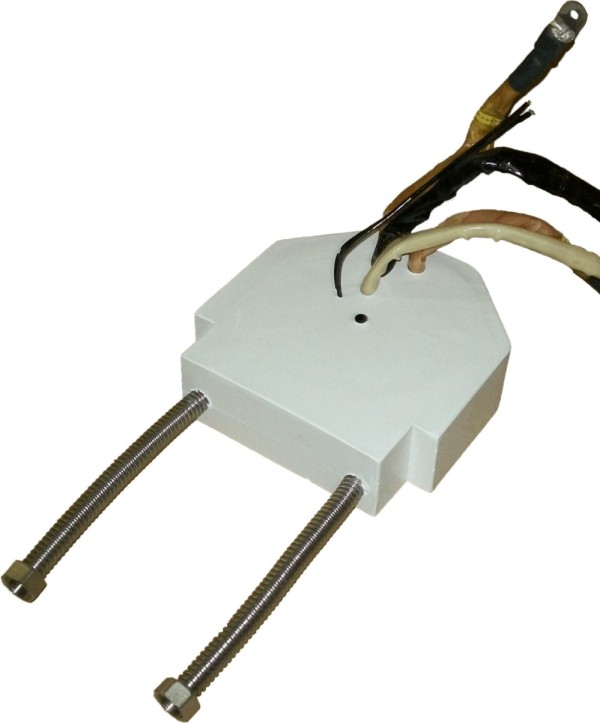

Water cooled toroidal transformer

BV 2983052


Table


Secondary
power

Efficiency

No-load
current

Frequency

Dimensions

Copper
weight

Total
weight

Cooling

BV

b

l

h

9 kVA

97 %

80 mA

250 kHz

Ø220

-

40

1,0 kg

2,6 kg

Air

-

10,35 kVA

97 %

80 mA

2,5 kHz

Ø230

-

120

7,2 kg

9,5 kg

Air

-

60 kVA

97 %

-

10 kHz

260

260

80

6,0 kg

14 kg

Water

2983052

Technical changes and optimisation reserved. All details are guide values, variations are possible.

10/2014
