Datasheet MF transformer as PDF
|
|

|
|
|
|
|
BV 2128008a
|
|
|
Customer’s demand
|
|
|
We need a transformer for a plasma supply with 32 kHz and 200 A. The supply should be built up symmetrically and it should be interfered with a direct current of 100 A.
|
|
|
Solution
|
|
|

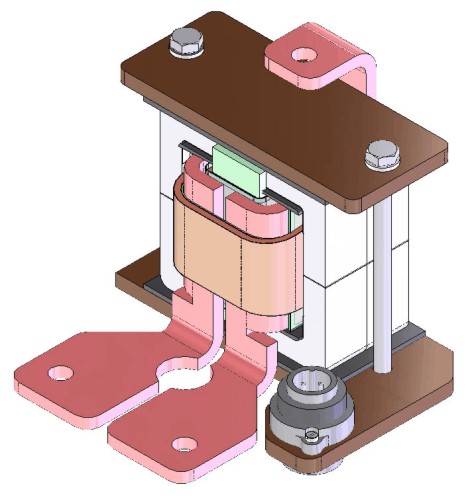

We build a transformer with a ferrite core E 80/38/20 with each 2 cores on top of each other. The secondary winding is done by one winding with central tapping. For a better coupling the primary winding is built up interlaced and is done with a high frequency wire to avoid proximity and skin losses. The secondary winding furthermore has mechanical and thermal functions by stabilizing the construction and channeling off heat via the connectors.
|
|
|
Technical data
|
|
|
Power: 3 kVA
Frequency: 32 kHz
Input: 480 V
Output voltage: 10-0-10 V
Output current: 200 A AC and 2 x 100 A DC
Dimensions: 127 x 127 x 117 mm
Weight: 2 kg
|
|
|
Table
|
|
|
Type
|
Type size
|
f
|
P
|
U Pri
|
U Sec
|
BV
|
|
TEOFPR
|
ETD 44
|
20-40 kHz
|
144 VA
|
120 V
|
1,2 V
|
1618002
|
|
TEOFPR
|
ETD 59
|
20-40 kHz
|
2000 VA
|
100 V
|
20 V
|
1618003
|
|
Technical changes and optimisation reserved. All details are guide values, variations are possible.
|
10/2022
|
|
|
|
