Three-phase sinusoidalfilter, motorfilter - 8 kHz


Datasheet as PDF
Sinusoidal filter (3 x 400 V) as lowpass filter made of reactor and capacitor for frequency converters conform to VDE 0570 / EN 61558

cesymb_harmonicsclass_Henergysymb-RoHs


Sinusoidal filter

Inverter output voltagesimulated sine wavemotor filter


Fields of application


Controlled three-phase drives with frequency inverter for printmachines, wood/plastic-machines, textile machines, packing machines, tool machines, production robots, conveyor belts, cranes, railway and transport, grinding mills, mixers, pumping aparatus, fans and chemical industries, test equipment, wind powerplants and photovoltaic system.


Description


Reactor with capacitor for sine wave creation of the output current of a frequency drive. Longer lifetime of motor insulation with reduction of du/dt and noise reduction. Motors can be operated over long supply lines, in most cases a screened cable is not necessary, better EMC data.


Advantages of cut-cores compared to normal metal sheets in sinusoidal filters


  • higher harmonics possible (8 kHz instead of 4 kHz)
  • lower hum noise due to lower magnetostriction
  • thin tape material possible, thus loss optimised
  • generally lower losses compared to metal sheets
  • magnetic flux along the tape windings
  • smaller air gap due to tape winding
  • optimal distribution of the necessary choke air gaps due to a free choice of cuts
  • more than one air gap possible
  • nano crystalline material available
  • higher efficiency
  • no holes that would disturb the magnetic flux


Table


Type

Type size

Rated
current
[A]

Inductance per phase
[mH]

Energy
[mWs]

Rated power
for motors
[kW]

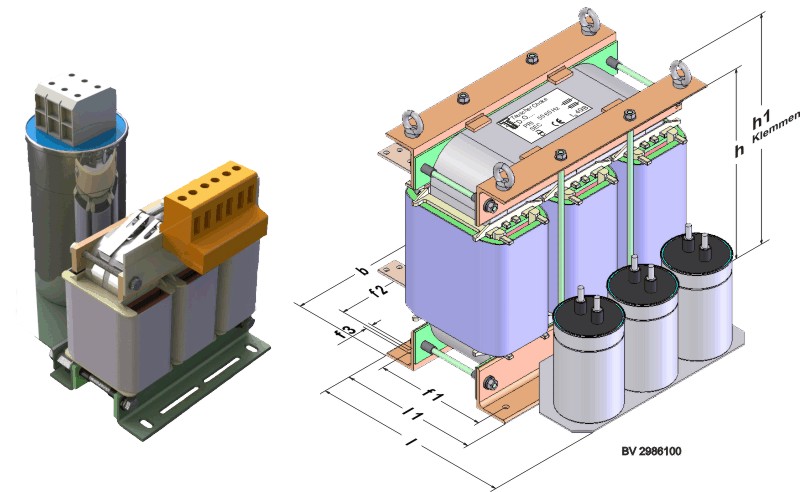

Dimensions in mm

Mounting holes

Copper
weight
[kg]

Total
weight
[kg]

b

l

l1

h

h1

f1

f2

f3

DUO

S3U 100/100/21

2,5

22

70

1

122

52

53

107

140

39

90

4,8

0,66

2,1

DUO

S3U 100/100/21

4

14,5

120

2

122

52

53

107

140

39

90

4,8

0,66

2,1

DUO

S3U 100/100/31

6

9

160

3

122

64

63

107

140

49

90

4,8

0,66

2,1

DUO

S3U 125/125/26,5

8

7

220

4

152

66

67

133

168

50

113

5,8

1,2

5,2

DUO

S3U 125/125/41,5

10

5,5

275

5

152

83

82

133

168

65

113

5,8

1,2

5,2

DUO

S3U 125/125/41,5

12

4

290

6

152

83

82

133

168

65

113

5,8

1,2

5,2

DUO

S3U 125/125/41,5

16

2,5

320

8

152

83

82

133

168

65

113

5,8

1,5

5,5

DUO

S3U 150/150/41,5

18

2,5

405

9

183

90

86

157

190

67

136

7

1,7

9,0

DUO

S3U 150/150/51,5

24

2

576

12

183

90

96

157

190

77

136

7

2,4

10,0

DUO

S3U 190/190/40

30

2

900

15

231

96

91

198

240

71

176

7

3,3

12,6

DUO

S3U 220/220/46

37

1,6

1090

18

263

132

127

228

280

81

205

9

5,5

19,0

DUO

S3U 220/220/71

48

1,2

1400

23

263

132

127

228

280

101

205

9

5,5

25,0

DUO

S3U 220/220/71

60

0,9

1600

29

263

134

127

228

280

101

205

9

6,8

26,8

DUO

S3U 250/250/52

75

0,8

2300

36

300

240

140

300

340

-

-

9

12

30

DUO

S3U 250/250/76

90

0,6

2400

43

300

270

164

300

340

-

-

9

13

40

DUO

S3U 300/300/63

115

0,5

3300

56

380

330

190

360

360

-

-

11

19

50

DUO

S3U 300/300/77

150

0,4

4500

73

380

345

205

360

360

-

-

11

21

65

DUO

S3U 300/300/92

180

0,3

4800

87

380

360

220

360

360

-

-

11

25

75

DUO

S3U 350/350/103

200

0,3

6000

100

400

380

240

380

380

-

-

11

35

110

DUO

S3U 350/350/131

250

0,2

6300

120

400

410

270

380

380

-

-

11

40

140

DUO

S3U 400/400/110

325

0,13

6900

160

470

390

250

470

470

-

-

11

55

150

DUO

S3U 400/400/140

440

0,1

9700

210

470

420

280

470

470

-

-

11

65

200

DUO

S3U 500/500/100

510

0,1

13000

250

570

400

260

550

550

-

-

11

75

225

DUO

S3U 500/500/100

610

0,09

16700

300

570

400

260

550

550

-

-

11

100

250

DUO

S3U 500/500/125

710

0,08

20100

350

570

425

285

550

550

-

-

11

110

275

Dimensions l and f1 are without air gap, they change depending on the thickness of the air gap.

Technical changes and optimisation reserved. All details are guide values, variations are possible.

10/2012


Sinusoidal filter

BV 28008001                                     BV 2214001
Metal sheet constructions
up to 4 kHz can be found
here
