PFC high current toroidal choke 80A - 250A

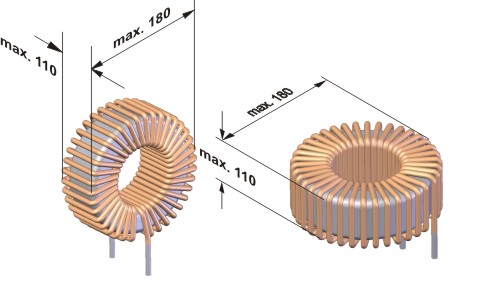

open - upright version                      open - lying version

toroidal choke

potted - lying version
potted toroidal choke, lying

Type

Current
[A]

No-load inductance
[µH]

Rated inductance
[µH]

Energy
[mWs]

DC resistance
mOhm

Copper weight
[g]

Total weight
[g]

DR...4

80

2,7

2,6

8,3

2,1

300

1250

DR...4

100

1,3

1,1

5,5

1,5

200

1200

DR...4

110

2100

515

3116

14

3300

15000

DR...4

125

0,55

0,5

4,1

1,0

130

1100

DR...4

150

0,27

0,3

2,8

0,7

90

1020

DR...4

200

0,11

0,1

2,2

0,4

60

1000

DR...4

250

0,055

0,05

1,6

0,3

40

960

Technical changes and optimisation reserved. All details are guide values, variations are possible.
