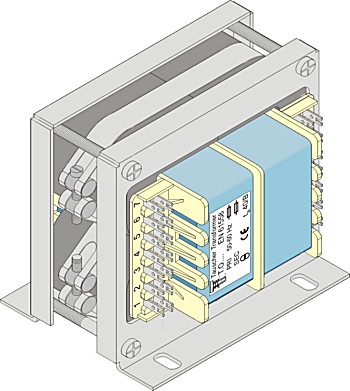

400 Hz-Transformator C-type core
|
|
datasheet as PDF-File
|
|
|
|
|
|
alternative version
|
|
terminals
with free wires
stranded, flexible wires with conductor-end-tube
flat-plug-tubes 2,8 -4,8 - 6,3 mm
round plug
ring cable eye
customer specified plugs
insertion with pins for print mounting or with
flat sockets 2,8 - 4,8 - 6,3 mm is available
bobbin
is available in PCB construction
|
|
table
|
|
type
|
typ size
|
sec.- power
|
efficieny
|
dimensions in mm
|
number
of
pins
|
mounting
|
copper
weight
|
total-
weight
|
|
b1
|
b
|
l
|
h
|
f1
|
f2
|
f3
|
|
|
|
TMO
|
SM 42
|
40 VA
|
91 %
|
54,0
|
50
|
42
|
51
|
2 x 4
|
32
|
32
|
3,6
|
55 g
|
0,20 kg
|
|
TMO
|
SM 55
|
120 VA
|
94 %
|
67,2
|
64
|
49
|
66
|
2 x 5
|
38
|
44
|
3,6
|
115 g
|
0,45 kg
|
|
TMO
|
SM 65
|
215 VA
|
95 %
|
77,6
|
73
|
59
|
75
|
2 x 6
|
47
|
50
|
4,8
|
215 g
|
0,85 kg
|
|
TMO
|
SM 74
|
360 VA
|
96 %
|
87,1
|
83
|
68
|
85
|
2 x 7
|
52
|
56
|
4,8
|
350 g
|
1,30 kg
|
|
TMO
|
SM 85a
|
440 VA
|
96 %
|
97,6
|
93
|
66
|
95
|
2 x 8
|
52
|
64
|
4,8
|
370 g
|
1,70 kg
|
|
TMO
|
SM 85b
|
560 VA
|
96 %
|
100,0
|
93
|
80
|
95
|
2 x 8
|
64
|
64
|
4,8
|
400 g
|
2,30 kg
|
|
TMO
|
SM 102a
|
730 VA
|
97 %
|
117,7
|
111
|
78
|
113
|
2 x 9
|
62
|
84
|
5,8
|
720 g
|
2,90 kg
|
|
TMO
|
SM 102b
|
920 VA
|
97 %
|
117,7
|
111
|
95
|
113
|
2 x 9
|
79
|
84
|
5,8
|
810 g
|
4,00 kg
|
|
technical changes and optimization reserved
|
|
|
|
