Lightning shock voltage test equipment


Lightning shock

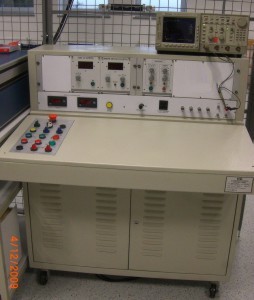

Lightning shockLightning shock test equipment conform to IEC 60060 and IEC 60722

Technical data
DC Test

  • max. charging potential: 140 kV
  • max. power: 5 kVA
  • max. current: 50 mA
  • Ripple: 3%

AC Test

  • max. charging potential: 100 kV
  • max. power: 5 kVA
  • max. current: 50 mA
  • Frequency: 50 Hz


Impulse test


Voltage 1,2/50 µs

No-load

Z > 100 Ohm

Impulse





rise from 10 to 90% x 1,25

1,2 µs



back half life 0 to 50%

50 µs



Energy

250 J



max. charging voltage

140 kV



max. repetitions

12 impulses per minute



max. power (capacitive)

5 000 pF
