ei_67_e

isolating transformer 5kV
500VA until 10000VA

1AC-isolating transformers to DIN EN 61558-2-4 with 5000V / 50Hz test voltage pri - sec and
power from 500 VA to 10 kVA

ei_67-smo

datasheet as PDF-File

ei_67-sml

applications

isolating transformer are used for supplying loads that must have a safe insulation and a
interference suppression from main.

description

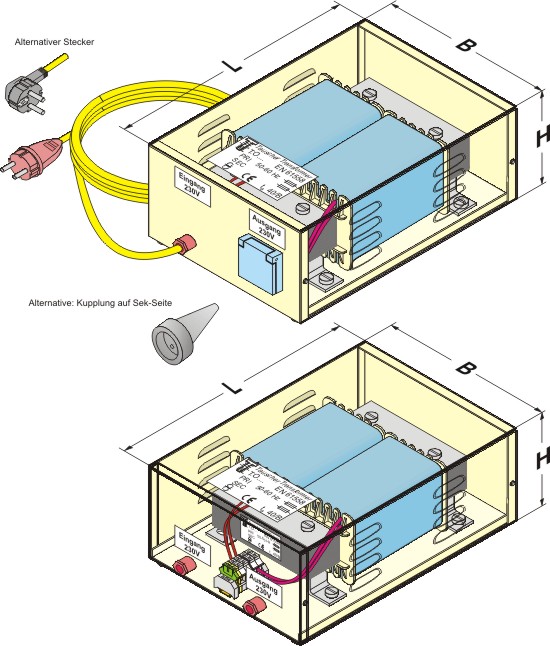

isolating transformer built in a housing IP23. Complete varnished under vacuum with high insulation coat.
Transformer for safety seperation of voltages. The windings have a low capacity construction.
Windings with screening. Low leakage and high insulation resistance.

special types

other primary- or secondary-voltages
other insulating voltages
three phase type

table

type	type size	sec.- power	efficiency	dimensions in [mm]			copper weight	total weight
type	type size	sec.- power	efficiency	L	B	H	copper weight	total weight
TT-500-E	UI 90/51,5	500 VA	92 %	183	183	183	2,1 kg	7,8 kg
TT 630	UI 90/51,5 S	630 VA	93 %	183	183	183	2,1 kg	7,8 kg
TT 800	UI 102/57 S	800 VA	94 %	254	222	192	2,55 kg	10,4 kg
TT 1000	UI 120/41 S	1000 VA	94 %	254	222	192	3,8 kg	12,0 kg
TT 1200	UI 120/51 S	1200 VA	95 %	254	222	192	4,5 kg	14,2 kg
TT 1600	UI 120/71 S	1600 VA	96 %	254	222	192	5,2 kg	18,1 kg
TT 2000	UI 132/72 S	2000 VA	96 %	314	224	191	5,8 kg	22,0 kg
TT 3000	UI 150/77 S	3000 VA	96 %	314	224	191	9,1 kg	31,0 kg
TT 5000	UI 180/93 S	5000 VA	97 %	398	280	280	16,2 kg	53,6 kg
TT 6000	UI 210/63 S	6000 VA	97 %	478	350	300	25,6 kg	62,0 kg
TT 8000	UI 210/88 S	8000 VA	97 %	478	350	300	28,5 kg	78,0 kg
TT 10000	Ui 240/83 S	10000 VA	98 %	478	350	300	42,0 kg	103,0 kg

technical changes and optimization resaerved
