one-phase power-high-frequency choke
UI 93 and UU 93
|
|
datasheet as PDF-File
|
|
|
|
|
|
|
|
applications
|
|
|
performance
|
switched mode power supply choke according to
|
|
|
DIN EN 61558, DIN EN 50081-1 and -2 for SMPS,
high frequency power choke,
ferrite choke and power applications
|
|
application
|
for power chokes, e.g. inverter-fed for railway applications
|
|
|
types can also be constructed as HF transformers
|
|
voltages
|
to customer demand
|
|
frequency
|
20 kHz to 300 kHz
|
|
core material
|
N87 oder PL7 for high power, with other material less power
|
|
insulation class
|
F (155°C) for lacquered and B(130°C) for potted components
|
|
temperature
|
ambient 40°C, higher temperatures
|
|
|
decreases the energy
|
|
protective class
|
fire class UL94V0, IP00 according to DIN 40 050
|
|
winding
|
with lacquered copper wire, HF-litz wire, foil or triple insulated Furukawa wire,
|
|
construction
|
vacuum varnished (open types) with class H impregnation varnish or vacuum potted in a case
|
|
terminals
|
free wires construction, connectors or sockets
|
|
safety
|
margins for air- and creepage-distance
|
|
|
|
table
|
|
type
|
type size
|
energy
E = 0,5 x L x I²
[mWs]
|

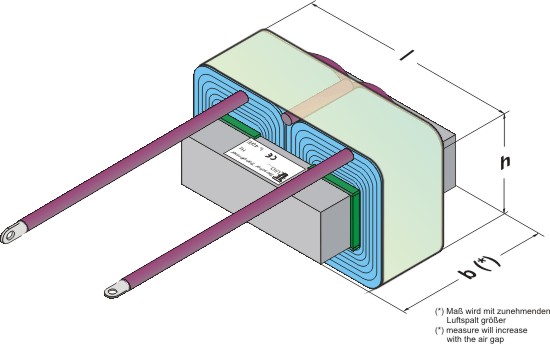

dimensions in mm
|
copper
weight
[kg]
|
total
weight
[kg]
|
|
l
|
b
|
h
|
|
DUO
|
UI 93/104/16
|
80
|
130
|
104
|
50
|
0,6
|
1,3
|
|
DUO
|
UI 93/104/30
|
150
|
130
|
104
|
65
|
0,7
|
1,8
|
|
DUO
|
UU 93/152/16
|
105
|
130
|
152
|
50
|
0,9
|
2,0
|
|
DUO
|
UU 93/152/30
|
200
|
130
|
152
|
65
|
1,1
|
2,6
|
|
DUO
|
UU 93/152/60
|
400
|
130
|
152
|
95
|
1,8
|
4,8
|
|
DUO
|
UU 93/152/90
|
600
|
130
|
152
|
125
|
2,3
|
6,8
|
|
DUO
|
UU 93/152/120
|
800
|
130
|
152
|
155
|
3,0
|
9,0
|
|
DUO
|
UU 93/152/150
|
1000
|
130
|
152
|
185
|
3,9
|
11,4
|
|
Energy is calculated with 40 kHz.
These values are examples and can differ depending on usage.
technical changes and optimization reserved
|
|
|
|
