Three-phase commutator choke


Datasheet as PDF

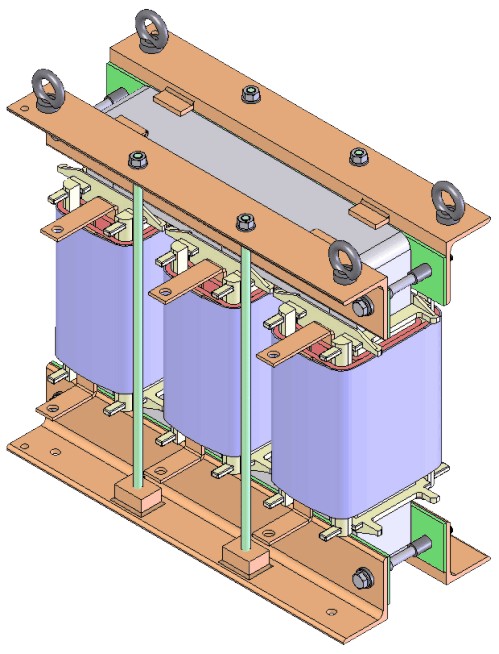

Three-phase commutator choke, up to 80 A with block terminals, above 110 A with flat copper connectors

cesymb_harmonicsclass_Henergysymb-RoHs


Commutator choke
Motordrossel


Table


Type

Type size

Rated
current

Inductance
pwer phase

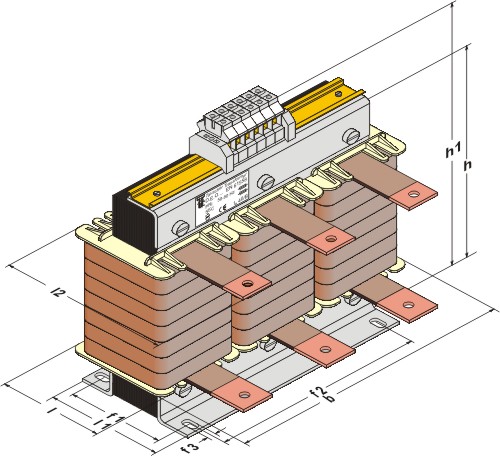

Dimensions in mm

Mounting holes

Copper
weight

Total
weight

b

l

l1

l2

h

h1

f1

f2

f3

DEO

100/100/31

10 A

2,92 mH

122

58

63

-

107

145

49

90

4,8

0,61 kg

2,8 kg

DEO

1125/125/26,5

16 A

1,83 mH

152

60

67

-

133

168

50

113

5,8

1,1 kg

4,1 kg

DEO

125/125/41,5

25 A

1,17 mH

152

75

82

-

133

168

65

113

5,8

1,5 kg

5,9 kg

DEO

150/150/31,5

36 A

0,81 mH

183

72

76

-

157

190

57

136

7

2,5 kg

6,5 kg

DEO

150/150/41,5

50 A

0,58 mH

183

82

86

-

157

190

67

136

7

3,7 kg

10,0 kg

DEO

170/170/46,5

63 A

0,46 mH

207

93

93

-

178

215

73

156

7

3,8 kg

12,5 kg

DEO

190/190/40

80 A

0,36 mH

231

87

91

-

198

240

71

176

7

7,2 kg

16,8 kg

DEO

200/200/51

110 A

0,26 mH

243

102

107

127

208

-

81

185

9

6,25 kg

19,9 kg

DEO

200/200/61

130 A

0,22 mH

243

112

117

137

208

-

91

185

9

6,6 kg

22,6 kg

DEO

200/200/75

150 A

0,19 mH

243

126

131

151

208

-

105

185

9

8,1 kg

27,5 kg

DEO

220/220/72

180 A

0,16 mH

268

127

134

157

228

-

102

200

10

10,5 kg

33,0 kg

DEO

250/250/77

230 A

0,12 mH

305

139

149

174

260

-

119

224

10

12,0 kg

45,0 kg

Technical changes and optimisation reserved. All details are guide values, variations are possible.

03/2012


Type

Type size

Rated
current

Rated
inductance

Dimensions

Mounting holes

Copper
weight

Total
weight

BV

b

l

h

f1

f2

f3

DEO

S3U 400/400/81

400 A

3 x 80 µH

500

250

490

165

410

11

26 kg

86 kg

19029062

Technical changes and optimisation reserved. All details are guide values, variations are possible.

04/2013
