C-core chokes


Datasheet as PDF
One-phase chokes with soft magnetic cut cores for power application conform to VDE 0570 / EN 61558

cesymb_harmonicsclass_Henergysymb-RoHs


C-core chokes

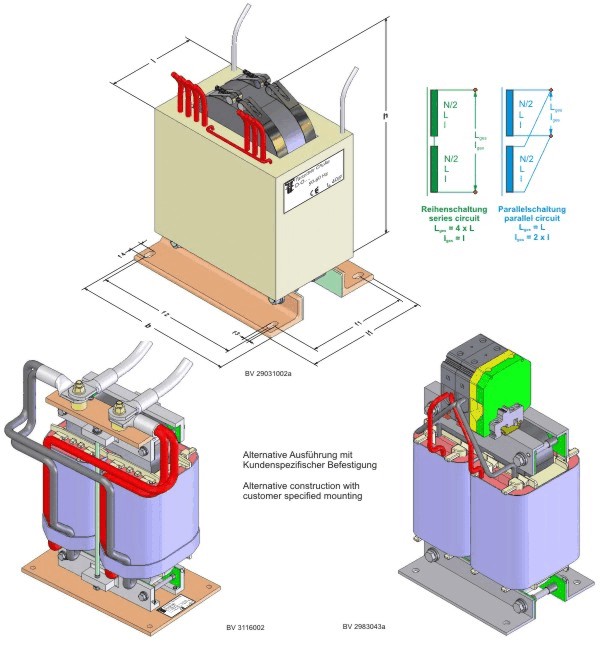

BV 29031002a and BV 3116002 and BV 2983043a


Fields of application


Line reactor, commutation reactor, smoothing reactor, PFC-choke, armature-circuit choke, intermediate circuit choke (direct link inductor), boost converter


Description


The size is determined by the energy E = 0,5 x L x I². All given values are calculated for low warming and low humming. With forced cooling smaller dimensions are possible. If there is only a bit of over temperature allowed, the dimensions will increase.

Chokes for one-phase consumers and electronic devices with the following advantages:

Use as a smoothing reactor or commutation reactor in DC circuits

  • low ripple factor
  • attenuation of current harmonics
  • bridging of line failures
  • limitation of current peaks

Use as line reactor

  • attenuation of current harmonics
  • limitation of start-up current
  • guarantee of short-circuit voltage of 4% to line

Use as PFC-reactor

  • reduction of harmonics

Use as an armature circuit reactor

  • reduction of harmonics in the motor and thus an increase of the motor efficiency at one-phase application
  • reduction of current noises in the motor
  • increase of the total inductance of the motor circuit for DC motors with low inductance

Use as intermediate circuit choke or boost converter with harmonics

  • Harmonics with high current stress can be absorbed very well,  because of the low-loss cut cores


Technical data


One-phase line reactor conform to EN 61558, EN 50081-1 and -2-20, EN 50081-1 and -2-20, EN 50082-1 and -2
Frequency range: 50 Hz up to 20 kHz
Test voltage: winding - core 2,5 kV
Good EMC-ratio
High thermal stability
Temperatureclass: B or F
Ambient temperature: 40 °C
Fire class: UL94V0
Prepared for protection index I
Protective class: IP00
Voltage range: 0 - 400 V, other values on request
Choke varnished under vacuuml 2 times
The given value of energy is only a guideline and may differ
Current: Can be defined by the customer, inductance is the result of type size and energy
Inductance: Can be defined by the customer, current is the result of type size and energy
Tolerance of energy +/- 30%
Block terminals shock proof conform to VBG4,
Flat connectors for bolts or plugs, not shock proof
To reduce losses and dimensions, it is possible to use amorphous or nanocrystalline core materials


Table


Typy

Type size

Energy
[mWs]

Dimensions in mm

Mounting holes

Copper
weight

Total
weight

b

h

h1

l

l1

f1

f2

f3

f4

DUO

SU 75/41,5

810

120

125

150

88

105

100

102

5,8

9

1,0 kg

3,6 kg

DUO

SU 90/31,5

900

120

150

180

78

95

120

102

5,8

9

1,55 kg

4,5 kg

DUO

SU 90/51,5

1600

120

150

180

98

115

120

102

5,8

9

2,10 kg

6,8 kg

DUO

SU 102/57

1800

144

170

200

109

127

136

126

5,8

9

2,55 kg

9,2 kg

DUO

SU 114/40

2500

144

190

225

92

110

152

126

5,8

9

2,70 kg

8,6 kg

DUO

SU 114/64

2700

144

190

225

116

134

152

126

5,8

9

3,50 kg

12,9 kg

DUO

SU 132/46

6200

166

220

260

106

139

176

146

7

13

5,20 kg

14,4 kg

DUO

SU 132/72

7500

166

220

260

132

156

176

146

7

13

5,80 kg

20,0 kg

DUO

SU 150/52

7500

200

250

295

118

144

200

174

7

13

7,30 kg

20,7 kg

DUO

SU150/77

12000

200

250

295

143

169

200

174

7

13

9,10 kg

28,9 kg

DUO

SU 168/92

14000

225

280

330

164

186

224

192

7

13

12,6 kg

42,0 kg

DUO

SU 180/63

15000

240

300

350

145

168

240

204

9

13

14,0 kg

37,6 kg

DUO

SU 180/78

16000

240

300

350

160

182

240

204

9

13

14,7 kg

43,6 kg

DUO

SU 180/93

17000

240

300

350

175

182

240

204

9

13

16,2 kg

50,6 kg

DUO

SU 210/73

22000

280

350

410

164

186

280

234

9

13

27,3 kg

71,8 kg

DUO

SU 210/103

25000

280

350

410

194

218

280

234

9

13

35,4 kg

87,0 kg

DUO

SU 210/133

30000

280

350

410

224

247

280

234

9

13

38,2 kg

105,0 kg

DUO

SU 240/110

56000

320

400

480

223

238

320

264

12

18

44,0 kg

116,0 kg

DUO

SU 240/140

80000

320

400

480

253

268

320

264

12

18

46,5 kg

140,0 kg

DUO

SU 360/150

120000

492

360

-

655

-

210

310

11

-

110,0 kg

310,0 kg

DUO

SU 400/120

120000

480

700

-

260

-

210

310

11

-

63,0 kg

215,0 kg

DUO

SU 480/160

120000

600

800

-

350

-

-

-

-

-

75,0 kg

300,0 kg

Dimensions l and f1 are without air gap, they change depending on the thickness of the air gap.

Technical changes and optimisation reserved. All details are guide values, variations are possible.

02/2015


Examples


Type

Type size

L

I1

I2 @ f

BV

DUOKWN

SU 132a/45

1,5 mH

50 A @ 50 Hz

26 A @ 10 kHz

32016007

DUOKWN

SU 150/52

1,3 mH

100 A DC

11 A @ 3333 Hz

2983043a

DUOKWN

SU 150/52

8 mH

75 A DC

5 A @ 1200 Hz

22040004

DUOKWN

SU 168/58

700 µH

180 A DC

40 A @ 300 Hz

16211084

DUOFWR

SU 210/71

300 µH

440 A DC

2,35 A @ 4 kHz

3116002

DUOFWR

SU 240/140

375 µH

600 A @ 50 Hz

37 A @ 2850 Hz

2937008

DUOFWR

SU 400/120

5 mH

300 A @ 50 Hz

16 A @ 1000 Hz

15013002

DUOCWR

SU 600/400

5 mH

500 ADC

25 A @1 kHz

1035994

Technical changes and optimisation reserved. All details are guide values, variations are possible.

05/2016


SchnittbandkerndrosselSchnittbandkerndrossel






BV 16211084
