Discharge choke for high voltage

BV 2310007


Customer’s demand


For our high voltage testing room we need a discharge choke. The choke should be free of any hum noise. To adapt it to various operation conditions it should be possible to switch several inductances.


Solution

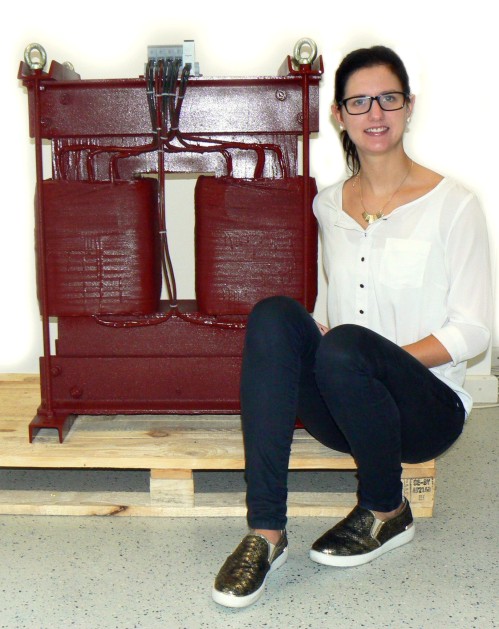

We develop a one phase choke with several tappings which respectfully give various inductances. To avoid hum noise the induction is adapted accordingly. With a number of isolation barriers we can reach the necessary dielectric strength.


Technical data


Inductance: L = 0-50-100-150-200 mH
Current: I = 75 A @ 50 Hz
Energy: 563 000 mWs
Dimensions: 700 mm x 540 mm x 935 mm
Weight: 750 kg
