Three-phase motor choke 4,3 MW


Datasheet as PDF

cesymb_harmonicsclass_Henergysymb-RoHs

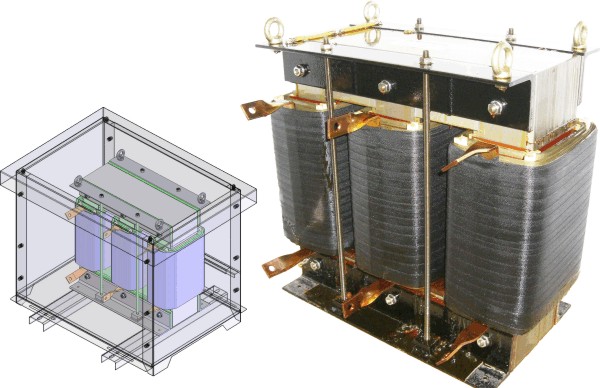

Three-phase motor choke

BV 29027001


Customer’s demand


Our electric motor with a power of 4,3 MW, which should be triggered by a mid-voltage rectifier, should be operated softly and on a low noise level. The steep rise dU/dt between the phases and against earth should be decreased


Solution


A three phase motor filter in a compact construction with optimised air gap distribution and inductance-stability during current peaks.


Technical data


Inductance: L = 3 x 0,2 mH
Current: 600 A
E = 36 000 mWs
Weight: G = 400 kg
Dimensions: 765 x 670 x 665 mm
Built in a housing IP 23
