Three-phase motorfilter 315 kW


Datasheet as PDF

cesymb_harmonicsclass_Henergysymb-RoHs

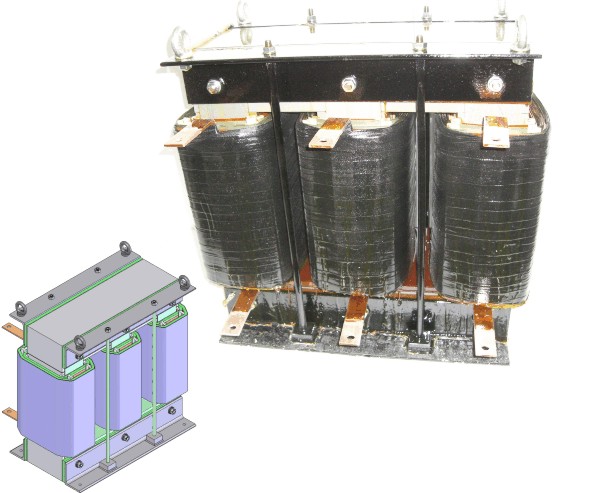

Three-phase motorfilter

BV 29021001


Customer’s demand


Our electric motor with 315 kW power, which should be triggered by a rectifier, should be operated soft and on a low noise level. The steep rise dU/dt between the phases and against earth should be decreased.


Solution


A three-phase motorfilter in a compact construction with optimised air gap distribution and inductance-stability during current peaks.


Technical data


Inductance: L = 3 x 170 µH
Current: 510 A eff
Weight: G = 261 kg
Dimensions: 555 x 370 x 560 mm
Power: 315 kW
